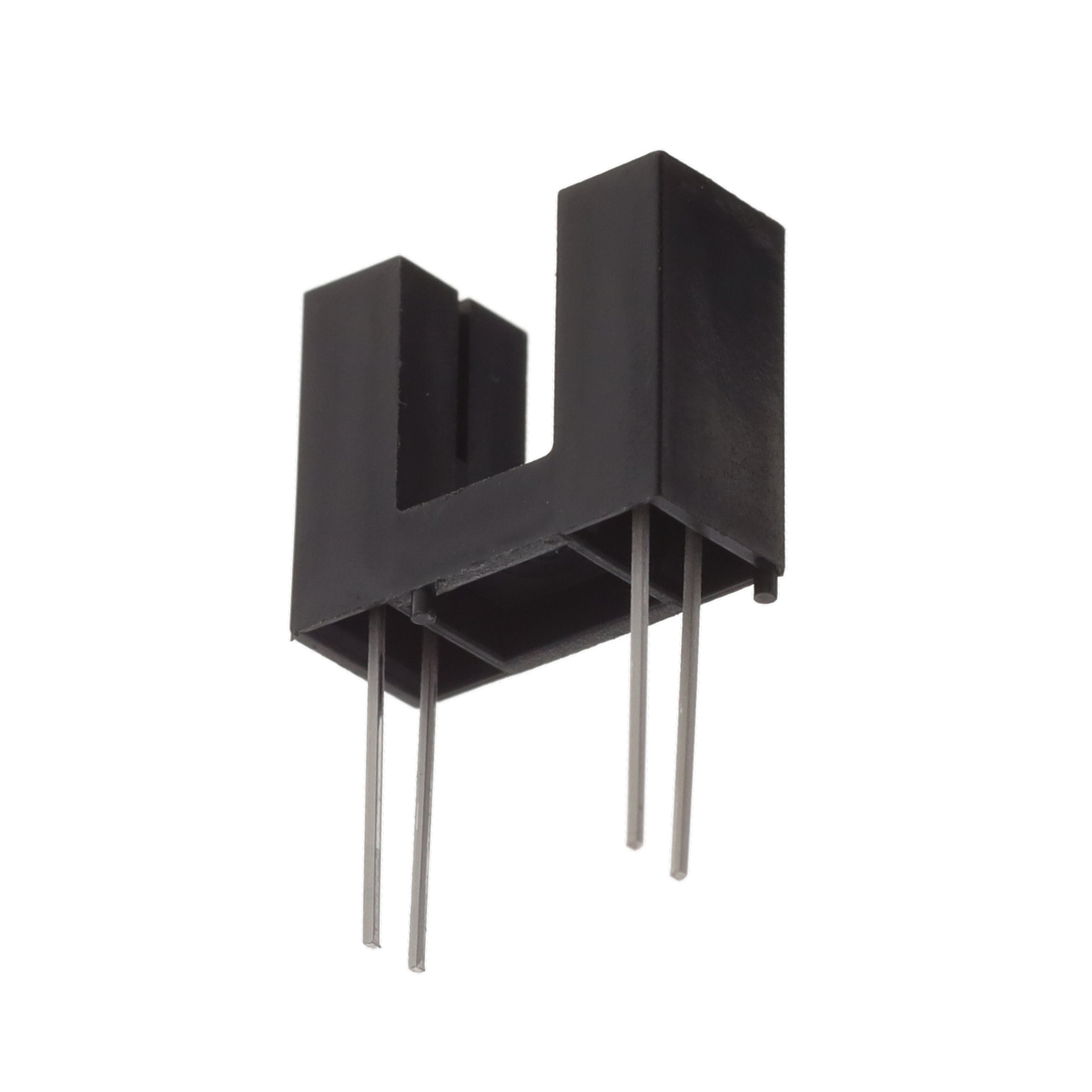

ITR8402-A

Active

Everlight Electronics Co Ltd

TRANSMISSIVE ITR, DIP, 14X6X11.6

Search across all available documentation for this part.

Active

Everlight Electronics Co Ltd

TRANSMISSIVE ITR, DIP, 14X6X11.6

Technical Specifications

Parameters and characteristics for this part

Specification	ITR8402-A

Current - Collector (Ic) (Max) [Max]	20 mA
Current - DC Forward (If) (Max)	50 mA
Mounting Type	Through Hole
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Output Configuration	Transistor
Package / Case	Slotted Module
Response Time	15 µs
Sensing Distance	0.236 in
Sensing Distance	6 mm
Sensing Method	Through-Beam
Type	Unamplified
Voltage - Collector Emitter Breakdown (Max) [Max]	30 V

Part	Package / Case	Output Configuration	Response Time	Sensing Distance	Sensing Distance	Mounting Type	Sensing Method	Current - Collector (Ic) (Max) [Max]	Type	Voltage - Collector Emitter Breakdown (Max) [Max]	Current - DC Forward (If) (Max)	Operating Temperature [Min]	Operating Temperature [Max]
Everlight Electronics Co Ltd ITR8402-A	Slotted Module	Transistor	15 µs	0.236 in	6 mm	Through Hole	Through-Beam	20 mA	Unamplified	30 V	50 mA	-25 °C	85 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Optical Sensor Through-Beam 0.236" (6mm) Transistor Slotted Module
