MN37A4AC01M030

Active

Amphenol Sine Systems Corp

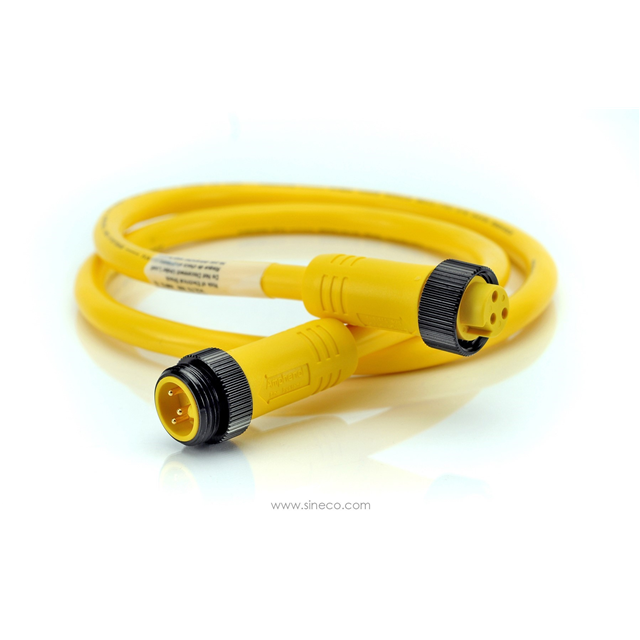

CIRC CBL 3POS RCPT TO PLUG 9.84'

Search across all available documentation for this part.

Active

Amphenol Sine Systems Corp

CIRC CBL 3POS RCPT TO PLUG 9.84'

Technical Specifications

Parameters and characteristics for this part

Specification	MN37A4AC01M030

1st Connector Gender	Male Pins
1st Connector Mounting Type	Free Hanging (In-Line)
1st Connector Number of Positions	3
1st Connector Number of Positions Loaded	All
1st Connector Orientation [custom]	Keyed
1st Connector Shell Size - Insert	0.875 in
1st Connector Shell Size - Insert	M22
1st Connector Type	Receptacle
2nd Connector Gender	Female Sockets
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Connector Number of Positions	3
2nd Connector Number of Positions Loaded	All
2nd Connector Shell Size - Insert	0.875 "
2nd Connector Shell Size - Insert	M22
2nd Connector Type	Plug
Assembly Configuration	Standard
Cable Material	Polyvinyl Chloride (PVC)
Cable Type	Round
Color	Yellow
Ingress Protection	IP67 - Dust Tight, Waterproof
Length [x]	9.84 ft
Length [x]	3 m
Shielding	Unshielded
Usage	Industrial Environments

Part	2nd Connector Shell Size - Insert	2nd Connector Shell Size - Insert	Shielding	2nd Connector Number of Positions	1st Connector Number of Positions Loaded	1st Connector Number of Positions	1st Connector Shell Size - Insert	1st Connector Shell Size - Insert	Color	Usage	2nd Connector Number of Positions Loaded	Ingress Protection	Length [x]	Length [x]	Cable Type	2nd Connector Mounting Type	1st Connector Type	Assembly Configuration	Cable Material	1st Connector Gender	1st Connector Orientation [custom]	2nd Connector Gender	1st Connector Mounting Type	2nd Connector Type
Amphenol Sine Systems Corp MN37A4AC01M030	0.875 "	M22	Unshielded	3	All	3	0.875 in	M22	Yellow	Industrial Environments	All	IP67 - Dust Tight Waterproof	9.84 ft	3 m	Round	Free Hanging (In-Line)	Receptacle	Standard	Polyvinyl Chloride (PVC)	Male Pins	Keyed	Female Sockets	Free Hanging (In-Line)	Plug
Amphenol Sine Systems Corp MN37A4AC01M150	0.875 "	M22	Unshielded	3	All	3	0.875 in	M22	Yellow	Industrial Environments	All	IP67 - Dust Tight Waterproof	49.2 ft	15 m	Round	Free Hanging (In-Line)	Receptacle	Standard	Polyvinyl Chloride (PVC)	Male Pins	Keyed	Female Sockets	Free Hanging (In-Line)	Plug

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	10	$ 52.50

General part information

Circular Cable Assembly Unshielded 9.84' (3.00m)
