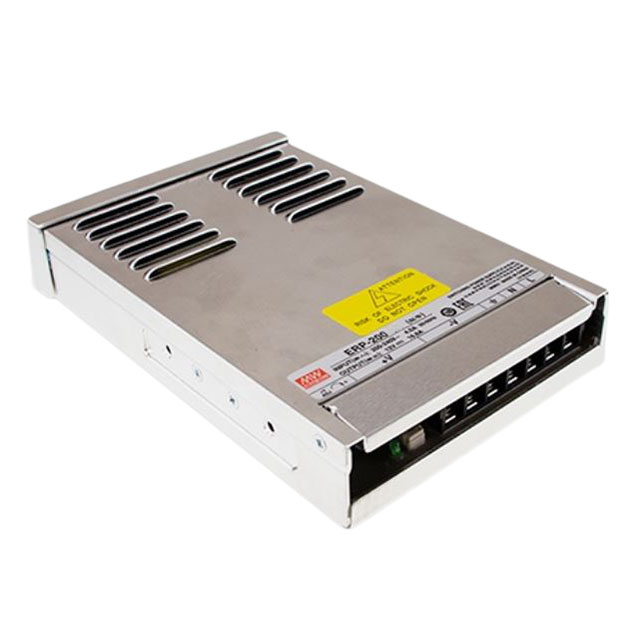

ERP-200-24
ActiveMEAN WELL USA Inc.
AC/DC CONVERTER 24V 200W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ERP-200-24
ActiveMEAN WELL USA Inc.
AC/DC CONVERTER 24V 200W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ERP-200-24 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | EAC, CQC, CE |
| Current - Output 1 | 8.33 A |
| Efficiency | 89 % |
| Features | Adjustable Output |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -30 °C |
| Power (Watts) | 200 W |
| Size / Dimension [x] | 7.07 " |
| Size / Dimension [x] | 179.6 mm |
| Size / Dimension [y] | 120 mm |
| Size / Dimension [y] | 4.72 in |
| Size / Dimension [z] | 32 mm |
| Size / Dimension [z] | 1.26 in |
| Type | Enclosed |
| Voltage - Input [Max] | 370 VDC, 264 VAC |
| Voltage - Input [Min] | 180 VAC, 254 VDC |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 37.69 | |
| 5 | $ 35.51 | |||
| 10 | $ 34.61 | |||
| 25 | $ 33.46 | |||
Description
General part information
ERP-200 Series
Enclosed AC DC Converters 1 Output 24V 180 ~ 264 VAC, 254 ~ 370 VDC Input
