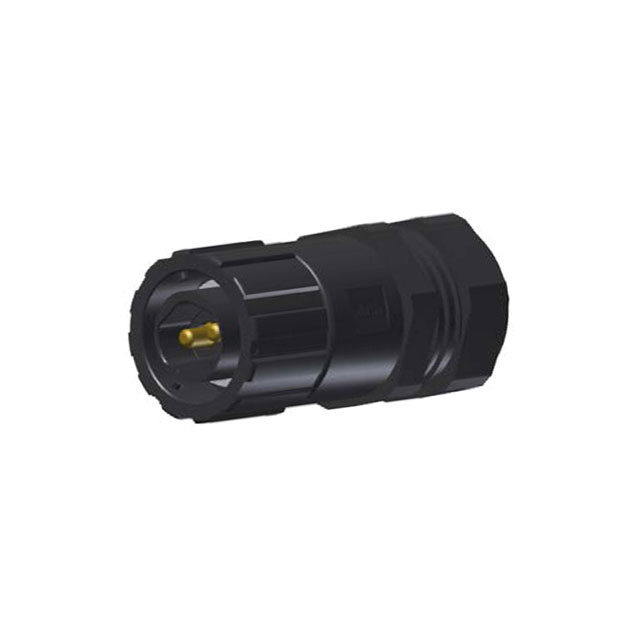

17-400443

Active

Amphenol CONEC

CONN PLUG MALE 2POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

17-400443

Active

Amphenol CONEC

CONN PLUG MALE 2POS GOLD CRIMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	17-400443

Applications	Telecommunications, Automation Control, Industrial
Backshell Material, Plating	Nylon, Polyamide (PA), Glass Filled
Cable Opening [Max] [diameter]	16 mm
Cable Opening [Max] [diameter]	0.63 in
Cable Opening [Min] [diameter]	0.354 in
Cable Opening [Min] [diameter]	9 mm
Color	Black
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Contact Material	Copper Alloy
Current Rating (Amps)	30 A
Fastening Type	Bayonet Lock
Features	Coupling Nut, Backshell
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyamide (PA), Nylon, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	2
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Nylon, Glass Filled, Polyamide (PA)
Shielding	Unshielded
Termination	Crimp
Voltage Rating	48 VAC

17-4004 Series

Part	Material	Color	Accessory Type	For Use With/Related Products	Features	Operating Temperature [Max]	Operating Temperature [Min]	Material Flammability Rating	Voltage Rating	Primary Material	Shielding	Contact Finish - Mating	Shell Material	Current Rating (Amps)	Contact Material	Mounting Type	Connector Type	Fastening Type	Contact Finish Thickness - Mating	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Ingress Protection	Termination	Backshell Material, Plating	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Applications	Insert Material	Orientation	Number of Positions
Amphenol CONEC 17-400410	Glass Filled Nylon Polyamide (PA)	Black	Cap (Cover) Protective	Female Receptacle Connector 2Pos	Contains Strap with Ring Dust Tight Waterproof
Amphenol CONEC 17-400463		Black			Backshell Coupling Nut	100 °C	-40 °C	UL94 V-0	300 VAC	Plastic	Unshielded	Gold	Glass Filled Nylon Polyamide (PA)	20 A	Copper Alloy	Free Hanging (In-Line)	Male Pins Plug	Bayonet Lock	Flash	16 mm	0.354 in	0.63 in	9 mm	IP67 - Dust Tight Waterproof	Crimp	Glass Filled Nylon Polyamide (PA)	3	1	2	Automation Control Industrial Telecommunications	Polyamide (PA) Nylon Glass Filled	Keyed
Amphenol CONEC 17-400433		Black			Backshell	100 °C	-40 °C	UL94 V-0	48 VAC	Plastic	Unshielded	Gold	Glass Filled Nylon Polyamide (PA)	30 A	Copper Alloy	Free Hanging (In-Line)	Receptacle Female Sockets	Bayonet Lock	Flash	16 mm	0.354 in	0.63 in	9 mm	IP67 - Dust Tight Waterproof	Crimp	Glass Filled Nylon Polyamide (PA)				Automation Control Industrial Telecommunications	Polyamide (PA) Nylon Glass Filled	Keyed	2
Amphenol CONEC 17-400453		Black			Backshell	100 °C	-40 °C	UL94 V-0	250 VAC	Plastic	Unshielded	Gold	Glass Filled Nylon Polyamide (PA)	20 A	Copper Alloy	Free Hanging (In-Line)	Receptacle Female Sockets	Bayonet Lock	Flash	16 mm	0.354 in	0.63 in	9 mm	IP67 - Dust Tight Waterproof	Crimp	Glass Filled Nylon Polyamide (PA)	3	1	2	Automation Control Industrial Telecommunications	Polyamide (PA) Nylon Glass Filled	Keyed
Amphenol CONEC 17-400443		Black			Backshell Coupling Nut	100 °C	-40 °C	UL94 V-0	48 VAC	Plastic	Unshielded	Gold	Glass Filled Nylon Polyamide (PA)	30 A	Copper Alloy	Free Hanging (In-Line)	Male Pins Plug	Bayonet Lock	Flash	16 mm	0.354 in	0.63 in	9 mm	IP67 - Dust Tight Waterproof	Crimp	Glass Filled Nylon Polyamide (PA)				Automation Control Industrial Telecommunications	Polyamide (PA) Nylon Glass Filled	Keyed	2

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 29.79
		10	$ 22.99
		25	$ 20.83
		50	$ 19.37
		100	$ 18.05
		250	$ 16.49
		500	$ 15.44

Description

General part information

17-4004 Series

2 (Power) Position Circular Connector Plug, Male Pins Crimp
