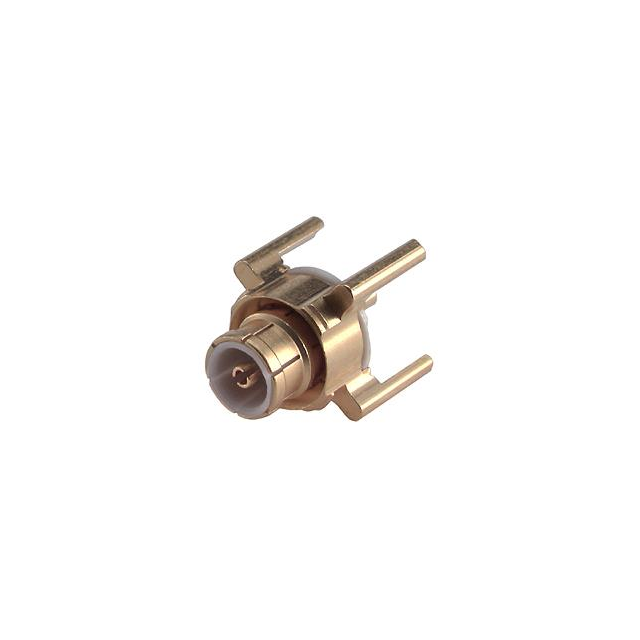

81_MMBX-50-0-2/111_NE
ActiveHuber+Suhner, Inc.
81_MMBX-50-0-2/111_NE
Deep-Dive with AI
Search across all available documentation for this part.
81_MMBX-50-0-2/111_NE
ActiveHuber+Suhner, Inc.
81_MMBX-50-0-2/111_NE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 81_MMBX-50-0-2/111_NE |
|---|---|
| Body Finish | Gold |
| Body Material | Brass, Bronze |
| Center Contact Material | Brass, Beryllium Copper |
| Center Contact Plating | Gold |
| Connector Style | MMBX |
| Connector Type | Male Pin, Plug |
| Contact Termination | Solder |
| Dielectric Material | Liquid Crystal Polymer (LCP), Perfluoroalkoxy (PFA) |
| Fastening Type | Snap-On |
| Frequency - Max [Max] | 12.4 GHz |
| Housing Color | Gold |
| Impedance | 50 Ohms |
| Mounting Type | Through Hole |
| Number of Ports | 1 |
| Operating Temperature [Max] | 155 °C |
| Operating Temperature [Min] | -55 °C |
| Shield Termination | Solder |
| Voltage Rating | 250 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 27.52 | |
| 10 | $ 24.10 | |||
| 25 | $ 23.06 | |||
| 50 | $ 22.32 | |||
| 100 | $ 21.57 | |||
| 250 | $ 20.38 | |||
| 500 | $ 19.79 | |||
Description
General part information
81_MMBX Series
MMBX Connector Plug, Male Pin 50 Ohms Through Hole Solder
