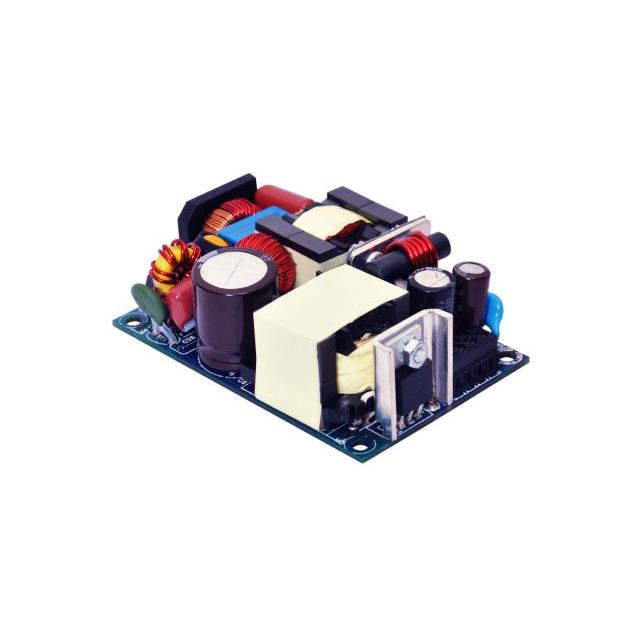

WLP75-1002-FR

Active

EOS Power India Private Ltd

AC/DC POWER SUPPLY 15V 5A CUSTOM

Deep-Dive with AI

Search across all available documentation for this part.

WLP75-1002-FR

Active

EOS Power India Private Ltd

AC/DC POWER SUPPLY 15V 5A CUSTOM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	WLP75-1002-FR

Applications	ITE (Commercial)
Approval Agency	UL, NEMKO, cUL, CE, CB, CCC
Current - Output 1	5 A
Efficiency	90 %
Features	Universal Input, Adjustable Output, PFC, Standby Output
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Power (Watts)	75 W
Size / Dimension [x]	76.2 mm
Size / Dimension [x]	3 "
Size / Dimension [y]	50.8 mm
Size / Dimension [y]	2 in
Size / Dimension [z]	25.4 mm
Size / Dimension [z]	1 "
Standard Number	60950-1
Type	Open Frame
Voltage - Input	390 VDC
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	85 VAC
Voltage - Isolation	4000 V
Voltage - Output 1	15 V

WLP75 Series

Part	Approval Agency	Power (Watts)	Current - Output 1	Mounting Type	Features	Standard Number	Voltage - Input [Max]	Voltage - Input	Voltage - Input [Min]	Voltage - Output 1	Efficiency	Number of Outputs	Applications	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Type	Voltage - Isolation
EOS Power India Private Ltd WLP75-1002-FR	CB CCC CE cUL NEMKO UL	75 W	5 A	Chassis Mount	Adjustable Output PFC Standby Output Universal Input	60950-1	264 VAC	390 VDC	85 VAC	15 V	90 %	1	ITE (Commercial)	25.4 mm	50.8 mm	76.2 mm	3 "	2 in	1 "	Open Frame	4000 V
EOS Power India Private Ltd LFWLP75-1301	CB CCC CE cUL NEMKO UL	75 W	6.25 A	Chassis Mount	Adjustable Output PFC Standby Output Universal Input	62368-1	264 VAC	390 VDC	85 VAC	12 V	90 %	1	ITE (Commercial)	25.4 mm	50.8 mm	76.2 mm	3 "	2 in	1 "	Open Frame	3000 V
EOS Power India Private Ltd LFWLP75-1005	CB CCC CE cUL NEMKO UL	75 W	2.5 A	Chassis Mount	Adjustable Output PFC Standby Output Universal Input	62368-1	264 VAC	390 VDC	85 VAC	30 V	91 %	1	ITE (Commercial)	25.4 mm	50.8 mm	76.2 mm	3 "	2 in	1 "	Open Frame	3000 V
EOS Power India Private Ltd LFWLP75-1306	CB CCC CE cUL NEMKO UL	75 W	1.29 A	Chassis Mount	Adjustable Output PFC Standby Output Universal Input	62368-1	264 VAC	390 VDC	85 VAC		93 %	1	ITE (Commercial)	25.4 mm	50.8 mm	76.2 mm	3 "	2 in	1 "	Open Frame	3000 V
EOS Power India Private Ltd LFWLP75-1004	CB CCC CE cUL NEMKO UL	75 W	1.56 A	Chassis Mount	Adjustable Output PFC Standby Output Universal Input	62368-1	264 VAC	390 VDC	85 VAC	48 V	93 %	1	ITE (Commercial)	25.4 mm	50.8 mm	76.2 mm	3 "	2 in	1 "	Open Frame	3000 V
EOS Power India Private Ltd LFWLP75-1302	CB CCC CE cUL NEMKO UL	75 W	5 A	Chassis Mount	Adjustable Output PFC Standby Output Universal Input	62368-1	264 VAC	390 VDC	85 VAC	15 V	90 %	1	ITE (Commercial)	25.4 mm	50.8 mm	76.2 mm	3 "	2 in	1 "	Open Frame	3000 V
EOS Power India Private Ltd WLP75-1303-II	CB CCC CE cUL NEMKO UL	75 W	3.12 A	Chassis Mount	Adjustable Output PFC Standby Output Universal Input	62368-1	264 VAC	390 VDC	85 VAC	24 V	91 %	1	ITE (Commercial)	25.4 mm	50.8 mm	76.2 mm	3 "	2 in	1 "	Open Frame	3000 V
EOS Power India Private Ltd LFWLP75-1001	CB CCC CE cUL NEMKO UL	75 W	6.25 A	Chassis Mount	Adjustable Output PFC Standby Output Universal Input	62368-1	264 VAC	390 VDC	85 VAC	12 V	90 %	1	ITE (Commercial)	25.4 mm	50.8 mm	76.2 mm	3 "	2 in	1 "	Open Frame	3000 V
EOS Power India Private Ltd LFWLP75-1002	CB CCC CE cUL NEMKO UL	75 W	5 A	Chassis Mount	Adjustable Output PFC Standby Output Universal Input	62368-1	264 VAC	390 VDC	85 VAC	15 V	90 %	1	ITE (Commercial)	25.4 mm	50.8 mm	76.2 mm	3 "	2 in	1 "	Open Frame	3000 V
EOS Power India Private Ltd WLP75-1003-II	CB CCC CE cUL NEMKO UL	75 W	3.12 A	Chassis Mount	Adjustable Output PFC Standby Output Universal Input	62368-1	264 VAC	390 VDC	85 VAC	24 V	91 %	1	ITE (Commercial)	25.4 mm	50.8 mm	76.2 mm	3 "	2 in	1 "	Open Frame	3000 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 22.28

Description

General part information

WLP75 Series

Open Frame AC DC Converters 1 Output 15V 85 ~ 264 VAC, 390VDC Input
