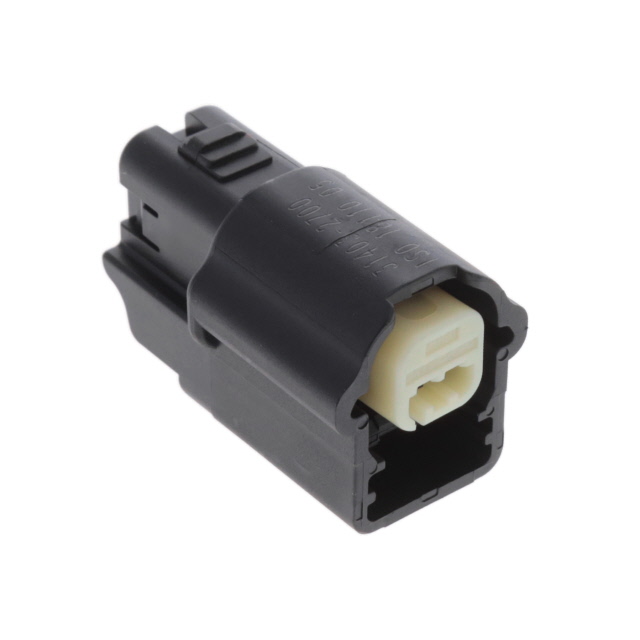

0314032700

Active

Molex

CONN RCPT HSG 2POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

0314032700

Active

Molex

CONN RCPT HSG 2POS 2.54MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0314032700

Color	Black
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Holder
Features	Sealed
Insulation Material	Polybutylene Terephthalate (PBT)
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	2
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in

031403 Series

Part	Fastening Type	Mounting Type	Insulation Material	Note	Features	Contact Termination	Color	Operating Temperature [Max]	Operating Temperature [Min]	Pitch [x]	Pitch [x]	Connector Type	Number of Positions	Contact Type	Number of Rows
Molex 0314032600	Latch Holder	Free Hanging (In-Line)	Polybutylene Terephthalate (PBT)	Contacts Not Included	Sealed	Crimp	Black	125 °C	-40 °C	2.54 mm	0.1 in	Receptacle	2	Female Socket	1
Molex 0314036100	Latch Holder	Free Hanging (In-Line)	Polybutylene Terephthalate (PBT)	Contacts Not Included	Sealed	Crimp	Black	125 °C	-40 °C	2.54 mm	0.1 in	Receptacle	6	Female Socket	1
Molex 0314033110	Latch Holder	Free Hanging (In-Line)	Polybutylene Terephthalate (PBT) Glass Filled	Contacts Not Included	Connector Position Assurance (CPA) Sealed	Crimp	Black	125 °C	-40 °C	2.54 mm	0.1 in	Receptacle		Female Socket	1
Molex 0314033000
Molex 0314032710
Molex 0314032210	Latch Holder	Free Hanging (In-Line)	Polybutylene Terephthalate (PBT)	Contacts Not Included	Connector Position Assurance (CPA) Sealed	Crimp	Gray	125 °C	-40 °C	2.54 mm	0.1 in	Receptacle	2	Female Socket	1
Molex 0314032700	Latch Holder	Free Hanging (In-Line)	Polybutylene Terephthalate (PBT)	Contacts Not Included	Sealed	Crimp	Black	125 °C	-40 °C	2.54 mm	0.1 in	Receptacle	2	Female Socket	1
Molex 0314032900
Molex 0314036210	Latch Holder	Free Hanging (In-Line)	Polyamide (PA66) Nylon 6/6 Glass Filled Syndiotatic Polystyrene (SPS)		Connector Position Assurance (CPA) Sealed	Crimp	Gray	125 °C	-40 °C	2.54 mm	0.1 in	Receptacle	6	Female Socket	1
Molex 0314036112	Latch Holder	Free Hanging (In-Line)	Nylon Polyamide (PA)		Connector Position Assurance (CPA)	Crimp	Black	125 °C	-40 °C	2.54 mm	0.1 in	Receptacle	6	Female Socket	1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	3200	$ 0.58

Description

General part information

031403 Series

2 Rectangular Connectors - Housings Receptacle Black 0.100" (2.54mm)

Documents

Technical documentation and resources

No documents available
