L2-PGW3-S

Obsolete

Bivar Inc.

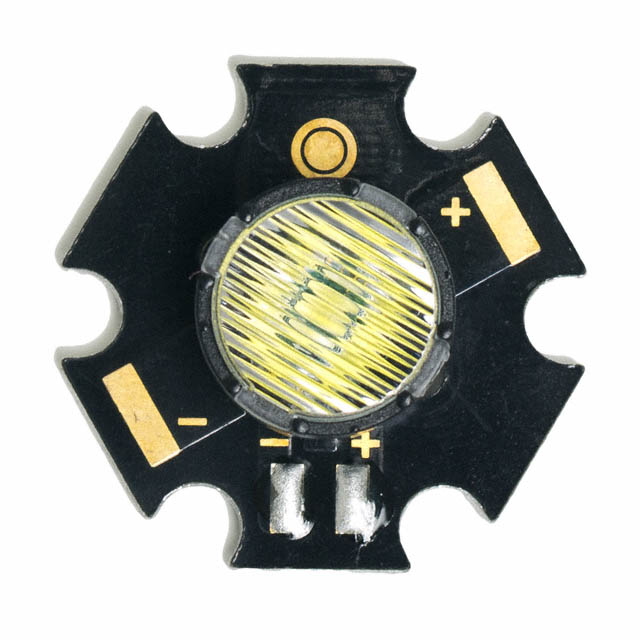

LED MOD L2 XLAMP STARBRD 3100K

Search across all available documentation for this part.

Obsolete

Bivar Inc.

LED MOD L2 XLAMP STARBRD 3100K

Technical Specifications

Parameters and characteristics for this part

Specification	L2-PGW3-S

CCT (K)	3100 K
Color	White, Warm
Configuration	Starboard
CRI (Color Rendering Index)	80
Current - Max [Max]	1.5 A
Current - Test	350 mA
Lens Type	Flat
Lumens/Watt @ Current - Test	77 lm/W
Luminous Flux @ Current/Temperature	80 lm
Size / Dimension [x]	19.9 mm
Size / Dimension [y]	19.9 mm
Temperature - Test	70 °C
Type	LED Module
Viewing Angle	45 °, 25 °
Voltage - Forward (Vf) (Typ)	2.95 V

Part	Temperature - Test	Current - Max [Max]	Viewing Angle	Configuration	Lens Type	Voltage - Forward (Vf) (Typ)	CRI (Color Rendering Index)	Type	CCT (K)	Lumens/Watt @ Current - Test	Current - Test	Size / Dimension [y]	Size / Dimension [x]	Luminous Flux @ Current/Temperature	Color
Bivar Inc. L2-PGW3-S	70 °C	1.5 A	25 ° 45 °	Starboard	Flat	2.95 V	80	LED Module	3100 K	77 lm/W	350 mA	19.9 mm	19.9 mm	80 lm	Warm White

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

LED Lighting COBs Engines Modules LED Module L2, XLamp® XP-G White, Warm Starboard
