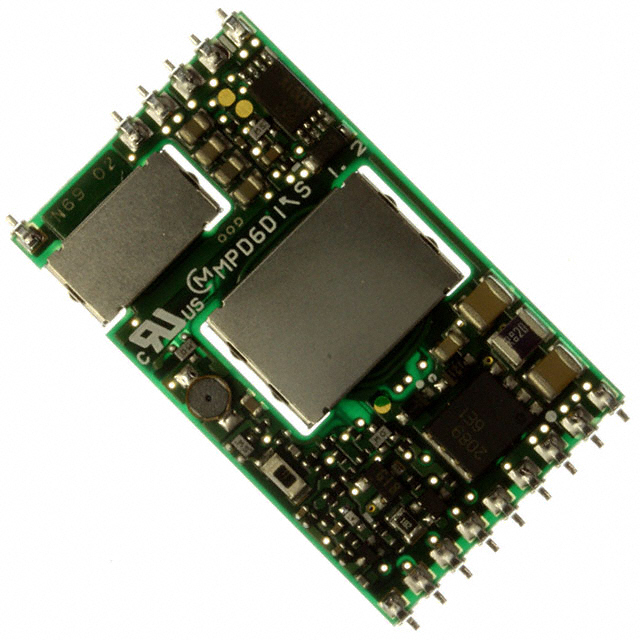

MPD6D102S

Obsolete

Murata Power Solutions Inc.

DC DC CONVERTER 1.2V 10W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MPD6D102S

Obsolete

Murata Power Solutions Inc.

DC DC CONVERTER 1.2V 10W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MPD6D102S

Applications	ITE (Commercial)
Control Features	Active Low, Enable
Current - Output (Max) [Max]	3.5 A
Efficiency	79 %
Features	OCP, OVP, Remote On/Off
Mounting Type	Surface Mount
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	18-SMD Module, 15 Leads
Power (Watts)	10 W
Size / Dimension [x]	1.47 "
Size / Dimension [x]	37.3 mm
Size / Dimension [y]	0.88 "
Size / Dimension [y]	22.4 mm
Size / Dimension [z]	0.17 in
Size / Dimension [z]	4.2 mm
Type	Isolated Module
Voltage - Input (Max) [Max]	75 V
Voltage - Input (Min) [Min]	36 V
Voltage - Isolation	1.5 kV
Voltage - Output 1	1.2 V

MPD6D Series

Part	Control Features	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Max) [Max]	Voltage - Input (Min) [Min]	Applications	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Mounting Type	Voltage - Output 1	Voltage - Isolation	Power (Watts)	Type	Number of Outputs	Package / Case	Efficiency	Features	Current - Output (Max) [Max]	Size / Dimension [y]	Size / Dimension [z]	Package / Case
Murata Power Solutions Inc. MPD6D117S	Active Low Enable	85 °C	-40 °C	75 V	36 V	ITE (Commercial)	1.47 "	31.2 mm	4.2 mm	37.3 mm	1.23 in	0.17 in	Surface Mount	3.3 V	1.5 kV	15 W	Isolated Module	1	17 Leads 20-SMD Module	90 %	OCP OTP OVP Remote On/Off	4.5 A
Murata Power Solutions Inc. MPD6D104S	Active Low Enable	85 °C	-40 °C	75 V	36 V	ITE (Commercial)	1.47 "			37.3 mm	0.88 "	0.17 in	Surface Mount	1.8 V	1.5 kV	10 W	Isolated Module	1	18-SMD Module 15 Leads	86 %	OCP OVP Remote On/Off	3 A	22.4 mm	4.2 mm
Murata Power Solutions Inc. MPD6D102S	Active Low Enable	85 °C	-40 °C	75 V	36 V	ITE (Commercial)	1.47 "			37.3 mm	0.88 "	0.17 in	Surface Mount	1.2 V	1.5 kV	10 W	Isolated Module	1	18-SMD Module 15 Leads	79 %	OCP OVP Remote On/Off	3.5 A	22.4 mm	4.2 mm
Murata Power Solutions Inc. MPD6D209S	Active Low Enable	85 °C	-40 °C	36 V	18 V	ITE (Commercial)							Surface Mount	5.5 V	1.5 kV	33 W	Isolated Module	1	17 Leads 20-SMD Module	91 %	OCP OVP Remote On/Off	6 A
Murata Power Solutions Inc. MPD6D128S		85 °C	-40 °C	75 V	36 V	ITE (Commercial)	1.77 in			45 mm	1.67 "	0.17 in	Surface Mount	5 V	1.5 kV	30 W	Isolated Module	1	34-SMD Module	92 %		6 A	42.4 mm	4.4 mm	29 Leads
Murata Power Solutions Inc. MPD6D108S	Active Low Enable	85 °C	-40 °C	75 V	36 V	ITE (Commercial)	1.47 "			37.3 mm	0.88 "	0.17 in	Surface Mount	5 V	1.5 kV	10 W	Isolated Module	1	18-SMD Module 15 Leads	89 %	OCP OVP Remote On/Off	2 A	22.4 mm	4.2 mm
Murata Power Solutions Inc. MPD6D101S	Active Low Enable	85 °C	-40 °C	75 V	36 V	ITE (Commercial)	1.47 "			37.3 mm	0.88 "	0.17 in	Surface Mount	12 V	1.5 kV	10 W	Isolated Module	1	18-SMD Module 15 Leads	88 %	OCP OVP Remote On/Off	800 mA	22.4 mm	4.2 mm
Murata Power Solutions Inc. MPD6D127S		85 °C	-40 °C	75 V	36 V	ITE (Commercial)	1.77 in			45 mm	1.67 "	0.17 in	Surface Mount	3.3 V	1.5 kV	30 W	Isolated Module	1	34-SMD Module	91 %			42.4 mm	4.4 mm	29 Leads

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

MPD6D Series

Isolated Module DC DC Converter 1 Output 1.2V 3.5A 36V - 75V Input
