119K111-K00N5

Active

Rosenberger

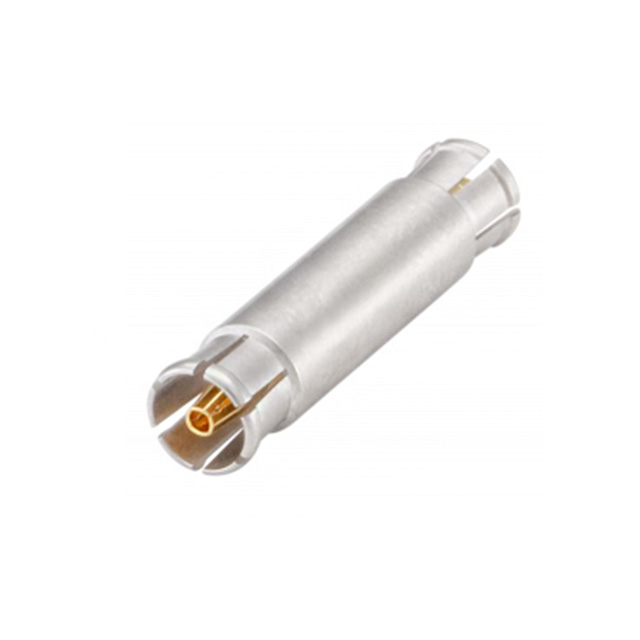

ADAPT PSMP PLUG - PSMP PLUG

Search across all available documentation for this part.

Active

Rosenberger

ADAPT PSMP PLUG - PSMP PLUG

Technical Specifications

Parameters and characteristics for this part

Specification	119K111-K00N5

Adapter Type	Jack to Jack
Body Finish	White Bronze
Body Material	Beryllium Copper
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Center Gender	Female to Female
Conversion Type	Same Series
Convert From (Adapter End)	PSMP Jack, Female Socket
Convert To (Adapter End)	PSMP Jack, Female Socket
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	10 GHz
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Style	Straight

Part	Impedance	Style	Center Contact Plating	Mounting Type	Dielectric Material	Adapter Type	Center Contact Material	Fastening Type	Center Gender	Frequency - Max [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Conversion Type	Body Finish	Convert To (Adapter End)	Convert From (Adapter End)	Body Material
Rosenberger 119K111-K00N5	50 Ohms	Straight	Gold	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	Jack to Jack	Beryllium Copper	Snap-On	Female to Female	10 GHz	-65 ░C	165 °C	Same Series	White Bronze	Female Socket PSMP Jack	PSMP Jack Female Socket	Beryllium Copper

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector PSMP Jack, Female Socket To PSMP Jack, Female Socket 50 Ohms

Technical documentation and resources

No documents available
