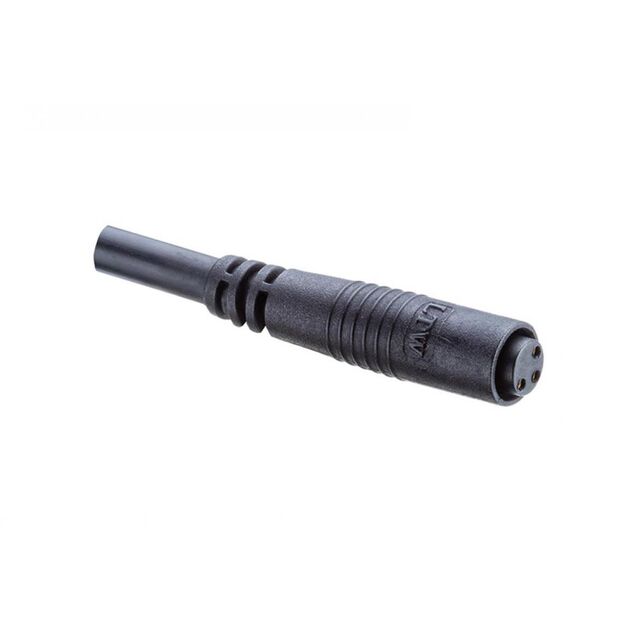

8P-03AFFM-QL5A01

Active

Amphenol LTW

M SERIES SENSOR CONNECTOR, M8, A CODE, PLASTIC, 3A, 03 PINS, FEMALE CONNECTOR, FEMALE CONTACT, STRAIGHT, SNAP-IN, OVERMOLDED, LE

Deep-Dive with AI

Search across all available documentation for this part.

8P-03AFFM-QL5A01

Active

Amphenol LTW

M SERIES SENSOR CONNECTOR, M8, A CODE, PLASTIC, 3A, 03 PINS, FEMALE CONNECTOR, FEMALE CONTACT, STRAIGHT, SNAP-IN, OVERMOLDED, LE

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	8P-03AFFM-QL5A01

1st Connector Gender	Female Sockets
1st Connector Mounting Type	Free Hanging (In-Line)
1st Connector Number of Positions	3
1st Connector Number of Positions Loaded	All
1st Connector Shell Size - Insert	M8
1st Connector Type	Plug
2nd Connector Type	Wire Leads
Assembly Configuration	Standard
Cable Material	Polyvinyl Chloride (PVC)
Cable Type	Round
Color	Black
Ingress Protection	IP65 - Dust Tight, Water Resistant
Length [x]	1 m
Length [x]	3.28 ft
Shielding	Unshielded
Usage	Industrial Environments

8P-03AFFM Series

Part	Cable Type	1st Connector Mounting Type	Cable Material	1st Connector Number of Positions	2nd Connector Type	1st Connector Number of Positions Loaded	Ingress Protection	Shielding	Assembly Configuration	1st Connector Shell Size - Insert	Color	Usage	1st Connector Gender	1st Connector Type	Length [x]	Length [x]
Amphenol LTW 8P-03AFFM-SL7A10	Round	Free Hanging (In-Line)	Polyvinyl Chloride (PVC)	3	Wire Leads	All	IP67 - Dust Tight Waterproof	Unshielded	Standard	M8	Black	Industrial Environments	Female Sockets	Receptacle
Amphenol LTW 8P-03AFFM-QL5B01	Round	Free Hanging (In-Line)	Polyurethane (PUR)	3	Wire Leads	All	IP65 - Dust Tight Water Resistant	Unshielded	Standard	M8	Black	Industrial Environments	Female Sockets	Plug	1 m	3.28 ft
Amphenol LTW 8P-03AFFM-SR7A10	Round	Free Hanging (In-Line)	Polyvinyl Chloride (PVC)	3	Wire Leads	All	IP67 - Dust Tight Waterproof	Unshielded	Standard	M8	Black	Industrial Environments	Female Sockets	Receptacle Right Angle
Amphenol LTW 8P-03AFFM-QL5B05	Round	Free Hanging (In-Line)	Polyurethane (PUR)	3	Wire Leads	All	IP65 - Dust Tight Water Resistant	Unshielded	Standard	M8	Black	Industrial Environments	Female Sockets	Plug
Amphenol LTW 8P-03AFFM-SL7B10	Round	Free Hanging (In-Line)	Polyurethane (PUR)	3	Wire Leads	All	IP67 - Dust Tight Waterproof	Unshielded	Standard	M8	Black	Industrial Environments	Female Sockets	Receptacle
Amphenol LTW 8P-03AFFM-SR7A05	Round	Free Hanging (In-Line)	Polyvinyl Chloride (PVC)	3	Wire Leads	All	IP67 - Dust Tight Waterproof	Unshielded	Standard	M8	Black	Industrial Environments	Female Sockets	Receptacle Right Angle	500 mm	1.64 ft
Amphenol LTW 8P-03AFFM-SR7A02	Round	Free Hanging (In-Line)	Polyvinyl Chloride (PVC)	3	Wire Leads	All	IP67 - Dust Tight Waterproof	Unshielded	Standard	M8	Black	Industrial Environments	Female Sockets	Receptacle Right Angle	2 m	6.56 ft
Amphenol LTW 8P-03AFFM-SL7B01	Round	Free Hanging (In-Line)	Polyurethane (PUR)	3	Wire Leads	All	IP67 - Dust Tight Waterproof	Unshielded	Standard	M8	Black	Industrial Environments	Female Sockets	Receptacle	1 m	3.28 ft
Amphenol LTW 8P-03AFFM-QL5A01	Round	Free Hanging (In-Line)	Polyvinyl Chloride (PVC)	3	Wire Leads	All	IP65 - Dust Tight Water Resistant	Unshielded	Standard	M8	Black	Industrial Environments	Female Sockets	Plug	1 m	3.28 ft
Amphenol LTW 8P-03AFFM-SR7A01	Round	Free Hanging (In-Line)	Polyvinyl Chloride (PVC)	3	Wire Leads	All	IP67 - Dust Tight Waterproof	Unshielded	Standard	M8	Black	Industrial Environments	Female Sockets	Receptacle Right Angle	1 m	3.28 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 9.00
		10	$ 6.91
		25	$ 6.24
		50	$ 5.78
		100	$ 5.37
		250	$ 4.88
		500	$ 4.55
		1000	$ 4.26
		2500	$ 3.98
Newark	Each	10	$ 6.66
		25	$ 6.27
		50	$ 5.78
		100	$ 5.39
		250	$ 4.88
		500	$ 4.75
		1000	$ 4.27

Description

General part information

8P-03AFFM Series

Circular Cable Assembly Unshielded 3.28' (1.00m)

Documents

Technical documentation and resources

No documents available
