JPM26P

Active

NKK Switches

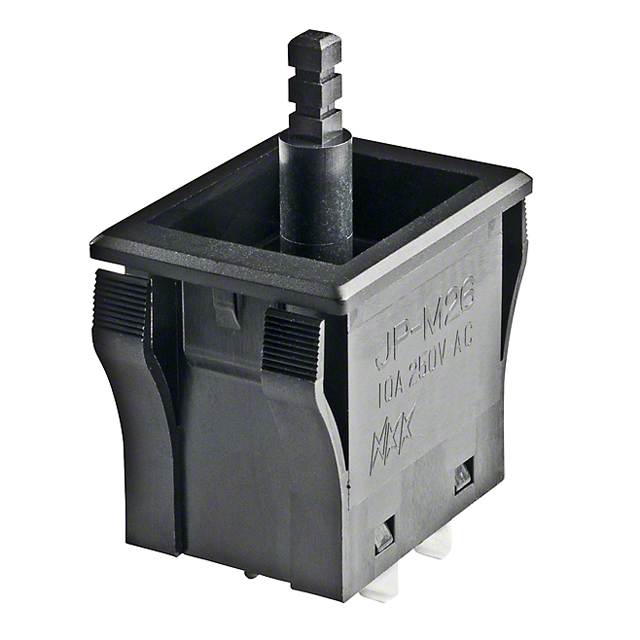

SWITCH: PUSH-BUTTON; POS: 2; SPST-NC; 10A/250VAC; OFF-ON; POLYAMIDE

Search across all available documentation for this part.

Active

NKK Switches

SWITCH: PUSH-BUTTON; POS: 2; SPST-NC; 10A/250VAC; OFF-ON; POLYAMIDE

Technical Specifications

Parameters and characteristics for this part

Specification	JPM26P

Actuator Marking	No Marking
Actuator Type	Plunger for Cap
Circuit	DPST
Current Rating (Amps)	10 A
Electrical Life	25000 Steps
Features	Tactile Feedback
Mechanical Life	25000 Steps
Mounting Type	Panel Mount, Snap-In
Operating Temperature [Max] [custom]	158 °F
Operating Temperature [Min] [custom]	-10 °C
Panel Cutout Dimensions [x]	28 mm
Panel Cutout Dimensions [y]	21.2 mm
Switch Function	Off-On
Termination Style	Solder Lug
Type	Standard
Voltage Rating - AC	125 V

Part	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Mounting Type	Switch Function	Voltage Rating - AC	Mechanical Life	Termination Style	Type	Actuator Marking	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Circuit	Current Rating (Amps)	Actuator Type	Electrical Life	Features
NKK Switches JPL26B	21.2 mm	28 mm	Panel Mount Snap-In	Off-On	125 V	25000 Steps	Solder Lug	Standard	No Marking	-10 °C	158 °F	DPST	16 A	Rectangular Button	25000 Steps	Tactile Feedback
NKK Switches JPM26P	21.2 mm	28 mm	Panel Mount Snap-In	Off-On	125 V	25000 Steps	Solder Lug	Standard	No Marking	-10 °C	158 °F	DPST	10 A	Plunger for Cap	25000 Steps	Tactile Feedback
NKK Switches JPL26P	21.2 mm	28 mm	Panel Mount Snap-In	Off-On	125 V	25000 Steps	Solder Lug	Standard	No Marking	-10 °C	158 °F	DPST	16 A	Plunger for Cap	25000 Steps	Tactile Feedback

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch DPST Standard Panel Mount, Snap-In
