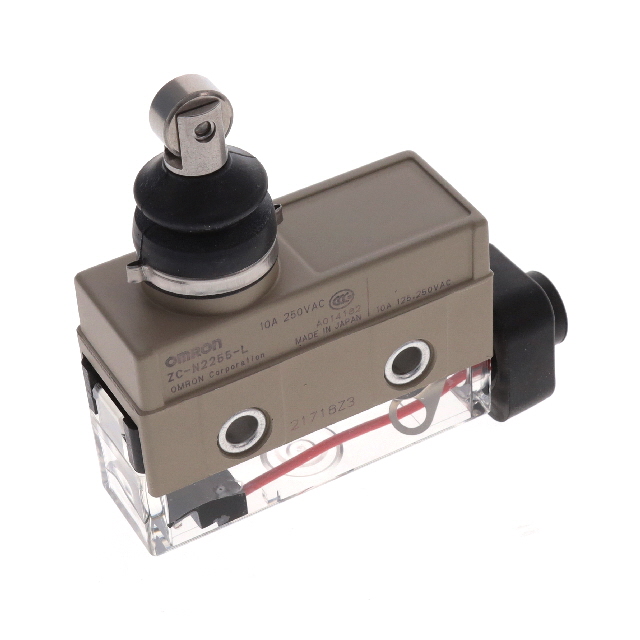

ZC-N2255L

Active

Omron Electronics Inc-EMC Div

SWITCH SNAP ACTION SPDT 10A 125V

Search across all available documentation for this part.

Active

Omron Electronics Inc-EMC Div

SWITCH SNAP ACTION SPDT 10A 125V

Technical Specifications

Parameters and characteristics for this part

Part	Actuator Type	Termination Style	Mounting Type	Electrical Life	Release Force	Switch Function	Operating Temperature [Max]	Operating Temperature [Min]	Differential Travel	Differential Travel	Ingress Protection	Voltage Rating - AC	Voltage Rating - DC	Operating Position	Operating Position	Mechanical Life	Operating Force	Overtravel	Overtravel	Pretravel	Pretravel	Features	Circuit	Features
Omron Electronics Inc-EMC Div ZC-N2255-L4	Roller Plunger	Screw Terminal	Chassis Mount	500000 Cycles	170 gf	On-Mom	80 C	-10 °C	0.008 in	0.2 mm	IP67 - Dust Tight Waterproof	125 V	30 V	1.866 in	47.4 mm	10000000 Cycles	700 gf	0.098 in	2.5 mm	1.5 mm	0.06 in	Status Indicator	SPDT
Omron Electronics Inc-EMC Div ZC-N2255-MR VCT 3M	Roller Plunger	Cable Leads	Chassis Mount	500000 Cycles	170 gf	On-Mom	80 C	-10 °C	0.008 in	0.2 mm	IP67 - Dust Tight Waterproof	125 V	30 V	1.866 in	47.4 mm	10000000 Cycles	700 gf	0.098 in	2.5 mm	1.5 mm	0.06 in		SPDT	3 m
Omron Electronics Inc-EMC Div ZC-N2255L	Roller Plunger	Screw Terminal	Chassis Mount	500000 Cycles	170 gf	On-Mom	80 C	-10 °C	0.008 in	0.2 mm	IP67 - Dust Tight Waterproof	125 V	30 V	1.866 in	47.4 mm	10000000 Cycles	700 gf	0.098 in	2.5 mm	1.5 mm	0.06 in	Status Indicator	SPDT

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 128.06

General part information

Switch SPDT Chassis Mount
