RT8805GQV

Obsolete

Richtek USA Inc.

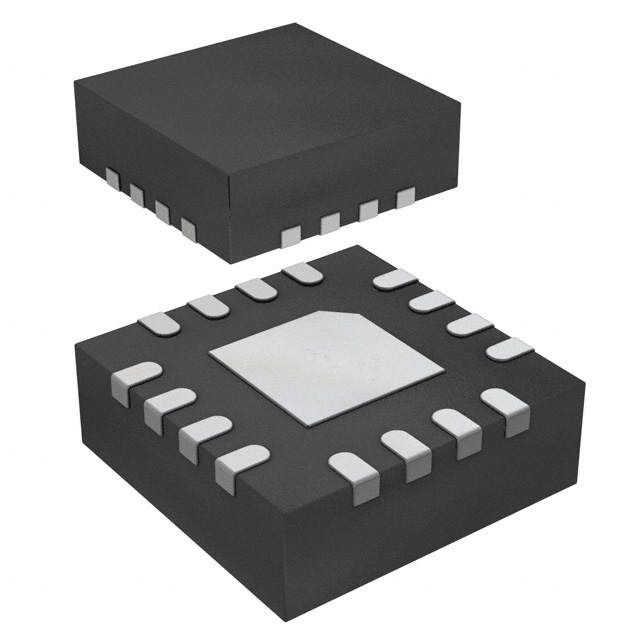

IC REG CTRLR BUCK 16VQFN

Search across all available documentation for this part.

Obsolete

Richtek USA Inc.

IC REG CTRLR BUCK 16VQFN

Technical Specifications

Parameters and characteristics for this part

Specification	RT8805GQV

Clock Sync	False
Control Features	Power Good, Soft Start, Phase Control, Current Limit
Duty Cycle (Max) [Max]	75 %
Frequency - Switching	300 kHz
Function	Step-Down
Mounting Type	Surface Mount
Number of Outputs	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output Configuration	Positive
Output Phases	2
Output Type	Transistor Driver
Package / Case	16-VQFN Exposed Pad
Supplier Device Package	16-VQFN (4x4)
Synchronous Rectifier	True
Topology	Buck
Voltage - Supply (Vcc/Vdd) [Max]	13.2 V
Voltage - Supply (Vcc/Vdd) [Min]	10.8 V

Part	Function	Duty Cycle (Max) [Max]	Output Phases	Number of Outputs	Package / Case	Frequency - Switching	Output Type	Topology	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Synchronous Rectifier	Control Features	Clock Sync	Voltage - Supply (Vcc/Vdd) [Min]	Voltage - Supply (Vcc/Vdd) [Max]	Output Configuration	Mounting Type
Richtek USA Inc. RT8805GQV	Step-Down	75 %	2	2	16-VQFN Exposed Pad	300 kHz	Transistor Driver	Buck	16-VQFN (4x4)	85 °C	-40 °C		Current Limit Phase Control Power Good Soft Start		10.8 V	13.2 V	Positive	Surface Mount
