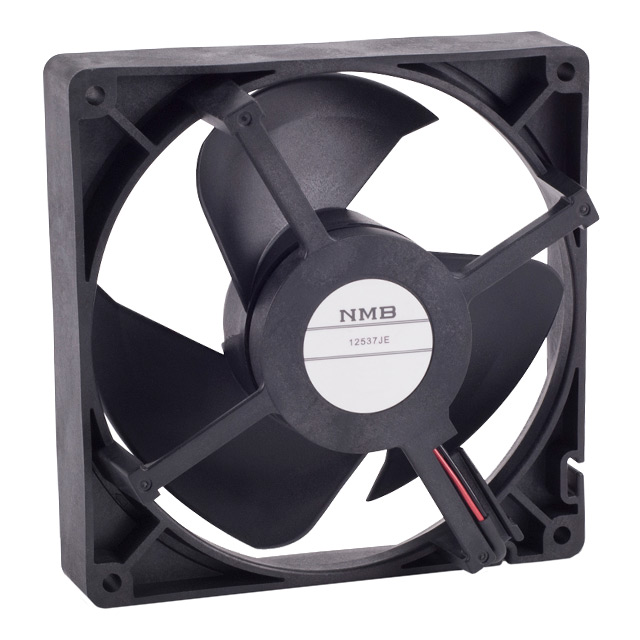

12537JE-12P-BA-F0
ActiveNMB TECHNOLOGIES
DC AXIAL FAN, 12 V, SQUARE, 125 MM, 37 MM, BALL BEARING, 76.63 CFM
Deep-Dive with AI
Search across all available documentation for this part.
12537JE-12P-BA-F0
ActiveNMB TECHNOLOGIES
DC AXIAL FAN, 12 V, SQUARE, 125 MM, 37 MM, BALL BEARING, 76.63 CFM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 12537JE-12P-BA-F0 |
|---|---|
| Air Flow | 2.14 mł/min |
| Air Flow | 76.6 CFM |
| Bearing Type | Ball |
| Current Rating (Amps) | 140 mA |
| Fan Type | Tubeaxial |
| Features | Auto Restart |
| Lifetime @ Temp. | 70000 Hrs |
| Material - Blade | Plastic |
| Material - Frame | Plastic |
| Noise | 35 dB |
| Operating Temperature [Max] | 40 °C |
| Operating Temperature [Max] | 40 °C |
| Operating Temperature [Min] | -40 °C |
| Operating Temperature [Min] | -40 °C |
| Power (Watts) | 1.69 W |
| RPM | 2550 RPM |
| Size / Dimension [x] | 125.4 mm |
| Size / Dimension [y] | 125.4 mm |
| Static Pressure | 42.3 Pa |
| Static Pressure | 0.17 in H2O |
| Termination | 2 Wire Leads |
| Voltage - Rated | 12 VDC |
| Voltage Range [Max] | 13.2 VDC |
| Voltage Range [Min] | 7 V |
| Width [y] | 37 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
12537JE Series
Fan Tubeaxial 12VDC Square - 125.4mm L x 125.4mm H Ball 76.6 CFM (2.14mł/min) 2 Wire Leads
