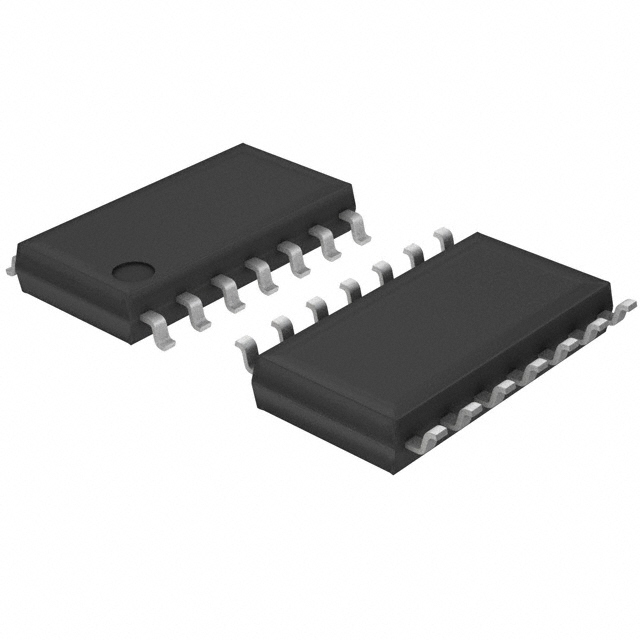

TLR344F-GE2

Active

Rohm Semiconductor

TLR™ SERIES, LOW VOLTAGE OPERATION GROUND SENSE OPERATIONAL AMPLIFIER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDesign Guide and Example of Stencil for Exposed Pad SOP14 Package Information +14

TLR344F-GE2

Active

Rohm Semiconductor

TLR™ SERIES, LOW VOLTAGE OPERATION GROUND SENSE OPERATIONAL AMPLIFIER

Deep-Dive with AI

DocumentsDesign Guide and Example of Stencil for Exposed Pad SOP14 Package Information +14

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TLR344F-GE2

Amplifier Type	CMOS
Current - Input Bias	1 pA
Current - Output / Channel	120 mA
Current - Supply	300 µA
Gain Bandwidth Product	2.3 MHz
Mounting Type	Surface Mount
Number of Circuits	4
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output Type	Rail-to-Rail
Package / Case	14-SOIC
Package / Case [custom]	4.4 mm
Package / Case [custom]	0.173 "
Slew Rate	1.2 V/µs
Supplier Device Package	14-SOP
Voltage - Input Offset	300 çV
Voltage - Supply Span (Max) [Max]	5.5 V
Voltage - Supply Span (Min) [Min]	1.8 V

TLR344F Series

TLR™ Series, Low Voltage Operation Ground Sense Operational Amplifier

Part	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Slew Rate	Current - Output / Channel	Amplifier Type	Number of Circuits	Package / Case [custom]	Package / Case	Package / Case [custom]	Current - Supply	Output Type	Voltage - Supply Span (Max) [Max]	Voltage - Supply Span (Min) [Min]	Voltage - Input Offset	Mounting Type	Gain Bandwidth Product	Current - Input Bias
Rohm Semiconductor TLR344F-GE2	85 °C	-40 °C	14-SOP	1.2 V/µs	120 mA	CMOS	4	4.4 mm	14-SOIC	0.173 "	300 µA	Rail-to-Rail	5.5 V	1.8 V	300 çV	Surface Mount	2.3 MHz	1 pA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 2.41
		10	$ 1.55
		25	$ 1.32
		100	$ 1.07
		250	$ 0.94
		500	$ 0.87
		1000	$ 0.80
	Digi-Reel®	1	$ 1.53
		10	$ 1.37
		25	$ 1.30
		100	$ 1.10
		250	$ 1.04
		500	$ 0.91
		1000	$ 0.75
	Tape & Reel (TR)	2500	$ 0.74
		5000	$ 0.70
		7500	$ 0.68
		12500	$ 0.65

Description

General part information

TLR344F Series

TLR344F is dual and quad CMOS operational amplifier with low supply voltage operation and full swing output. It is suitable for battery-operated equipment. The MOSFET input stage provides low input bias current. It is capable to use for sensor applications.
