28558.4

Active

Conta-Clip, Inc.

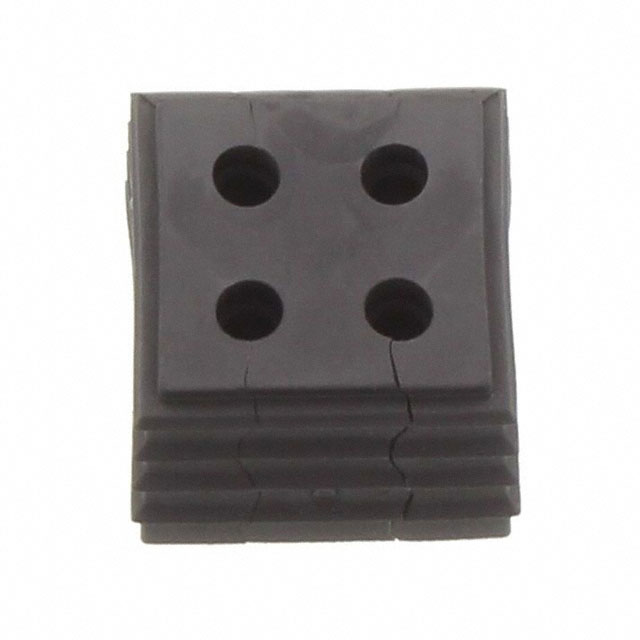

KDS SEALING SLEEVE MULTI 4MM

Search across all available documentation for this part.

Active

Conta-Clip, Inc.

KDS SEALING SLEEVE MULTI 4MM

Technical Specifications

Parameters and characteristics for this part

Specification	28558.4

Bushing, Grommet Type	Frame Grommet, Split
Color	Black
Diameter - Inside [Max] [diameter]	4 mm
Diameter - Inside [Max] [diameter]	0.157 in
Diameter - Inside [Min] [diameter]	3 mm
Diameter - Inside [Min] [diameter]	0.118 in
Features	IP66 - Dust Tight, Water Resistant
For Use With/Related Products	4 Cable Openings
Material	Thermoplastic Elastomer (TPE)
Material Flammability Rating	UL94 HB
Panel Cutout Dimensions [x]	20.3 mm
Panel Cutout Dimensions [x]	0.799 in

Part	Features	Color	For Use With/Related Products	Material Flammability Rating	Material	Bushing, Grommet Type	Diameter - Inside [Min] [diameter]	Diameter - Inside [Max] [diameter]	Diameter - Inside [Min] [diameter]	Diameter - Inside [Max] [diameter]	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [x]
Conta-Clip, Inc. 28558.4	IP66 - Dust Tight Water Resistant	Black	4 Cable Openings	UL94 HB	Thermoplastic Elastomer (TPE)	Frame Grommet Split	3 mm	4 mm	0.118 in	0.157 in	20.3 mm	0.799 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Square - 0.799" (20.30mm) Frame Grommet, Split 0.118" ~ 0.157" (3.00mm ~ 4.00mm) Black

Technical documentation and resources

No documents available
