846-034-559-112
ActiveEDAC Inc.
CONN EDGE SGL FMALE 34POS 0.125
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
846-034-559-112
ActiveEDAC Inc.
CONN EDGE SGL FMALE 34POS 0.125
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 846-034-559-112 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Unthreaded, Flush Mount, Side Opening |
| Flange Feature [diameter] | 3.25 mm |
| Flange Feature [diameter] | 0.128 " |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 34 |
| Number of Positions/Bay/Row [custom] | 34 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.125 in |
| Pitch [x] | 3.18 mm |
| Read Out | Single |
| Termination | Solder |
| Termination Rows | 1 |
846-034 Series
...
| Part | Contact Material | Contact Type | Operating Temperature [Max] | Operating Temperature [Min] | Read Out | Material - Insulation | Flange Feature | Card Type | Number of Rows | Contact Finish | Gender | Number of Positions/Bay/Row [custom] | Termination Rows | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Termination | Number of Positions | Pitch [x] | Pitch [x] | Contact Finish Thickness | Contact Finish Thickness | Color | Mounting Type | Flange Feature [diameter] | Flange Feature [diameter] | Features | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Copper Alloy | Cantilever | 125 °C | -40 °C | Single | Diallyl Phthalate (DAP) | M3 Threaded Insert Top Mount Opening | Non Specified - Single Edge | 1 | Gold | Female | 34 | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | 34 | 0.125 in | 3.18 mm | 10 Áin | 0.25 Ám | Green | Through Hole Right Angle | |||||
EDAC Inc. | Copper Alloy | Cantilever | 125 °C | -40 °C | Single | Diallyl Phthalate (DAP) | 4-40 Flush Mount Threaded Insert Top Opening | Non Specified - Single Edge | 1 | Gold | Female | 34 | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | 34 | 0.125 in | 3.18 mm | 10 Áin | 0.25 Ám | Green | Through Hole | |||||
EDAC Inc. | Copper Alloy | Cantilever | 125 °C | -40 °C | Dual | Diallyl Phthalate (DAP) | Flush Mount Top Opening Unthreaded | Non Specified - Dual Edge | 2 | Gold | Female | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder Eyelet(s) | 34 | 0.125 in | 3.18 mm | 10 Áin | 0.25 Ám | Green | Board Edge Straddle Mount | 3.96 mm | 0.156 in | Card Extender | |||
EDAC Inc. | Copper Alloy | Cantilever | 125 °C | -40 °C | Dual | Diallyl Phthalate (DAP) | Floating Bobbin Top Mount Opening | Non Specified - Dual Edge | 2 | Gold | Female | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder Eyelet(s) | 34 | 0.125 in | 3.18 mm | 10 Áin | 0.25 Ám | Green | Through Hole | 2.95 mm | 0.116 in | ||||
EDAC Inc. | Copper Alloy | Cantilever | 125 °C | -40 °C | Dual | Diallyl Phthalate (DAP) | Floating Bobbin Flush Mount | Non Specified - Dual Edge | 2 | Gold | Female | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder Eyelet(s) | 34 | 0.125 in | 3.18 mm | 10 Áin | 0.25 Ám | Green | Board Edge Straddle Mount | 2.95 mm | 0.116 in | Card Extender | |||
EDAC Inc. | Copper Alloy | Cantilever | 125 °C | -40 °C | Single | Diallyl Phthalate (DAP) | M3 Threaded Insert Top Mount Opening | Non Specified - Single Edge | 1 | Gold | Female | 34 | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder Eyelet(s) | 34 | 0.125 in | 3.18 mm | 10 Áin | 0.25 Ám | Green | Through Hole | |||||
EDAC Inc. | Copper Alloy | Cantilever | 125 °C | -40 °C | Dual | Diallyl Phthalate (DAP) | Top Mount Opening Unthreaded | Non Specified - Dual Edge | 2 | Gold | Female | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | 34 | 0.125 in | 3.18 mm | 10 Áin | 0.25 Ám | Green | Through Hole | 3.96 mm | 0.156 in | ||||
EDAC Inc. | Copper Alloy | Cantilever | 125 °C | -40 °C | Dual | Diallyl Phthalate (DAP) | Top Mount Opening Unthreaded | Non Specified - Dual Edge | 2 | Gold | Female | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder Eyelet(s) | 34 | 0.125 in | 3.18 mm | 10 Áin | 0.25 Ám | Green | Board Edge Straddle Mount | 3.96 mm | 0.156 in | Card Extender | |||
EDAC Inc. | Copper Alloy | Cantilever | 125 °C | -40 °C | Single | Diallyl Phthalate (DAP) | Flush Mount Side Opening Unthreaded | Non Specified - Single Edge | 1 | Gold | Female | 34 | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | 34 | 0.125 in | 3.18 mm | 10 Áin | 0.25 Ám | Green | Through Hole Right Angle | 3.25 mm | 0.128 " | |||
EDAC Inc. | Copper Alloy | Cantilever | 125 °C | -40 °C | Single | Diallyl Phthalate (DAP) | Side Mount Opening Unthreaded | Non Specified - Single Edge | 1 | Gold | Female | 34 | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder Eyelet(s) | 34 | 0.125 in | 3.18 mm | 10 Áin | 0.25 Ám | Green | Through Hole | 3.25 mm | 0.128 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
846-034 Series

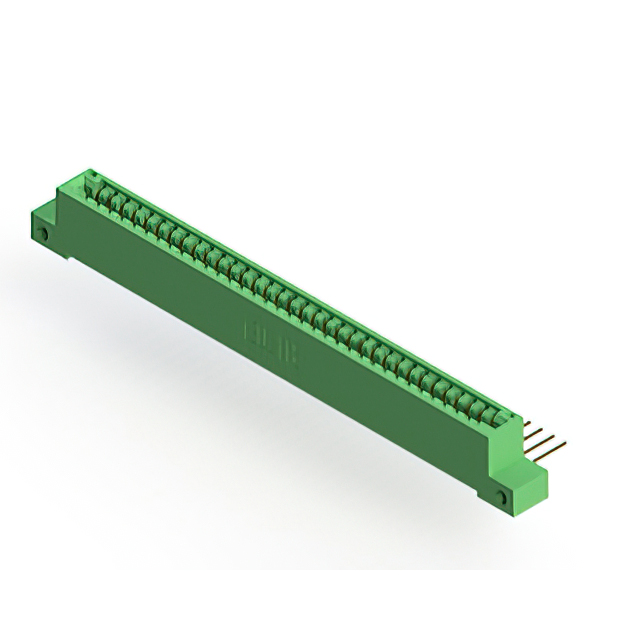

34 Position Female Connector Non Specified - Single Edge Gold 0.125" (3.18mm) Green
