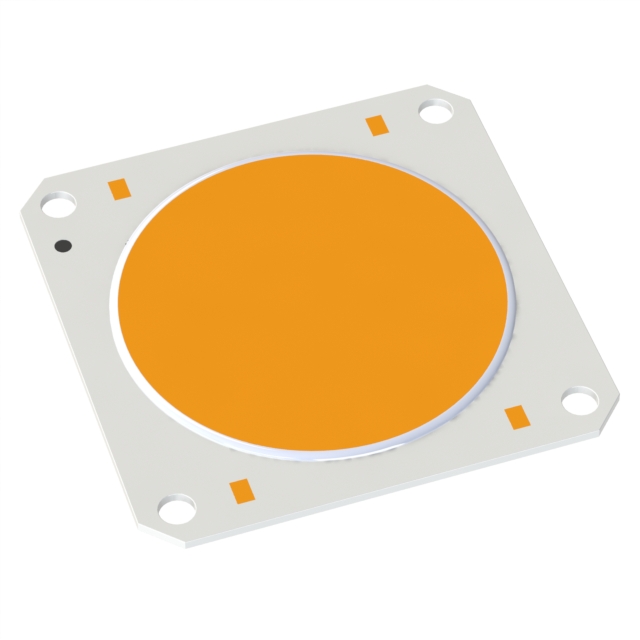

CVM-45-56-95-60-BA42-F5-2

Active

Luminus Devices Inc.

LED COB COOL WHT SQUARE 5600K

Search across all available documentation for this part.

Active

Luminus Devices Inc.

LED COB COOL WHT SQUARE 5600K

Technical Specifications

Parameters and characteristics for this part

Specification	CVM-45-56-95-60-BA42-F5-2

CCT (K)	5600 K
Color	Cool, White
Configuration	Square
CRI (Color Rendering Index)	95
Current - Max [Max]	10 A
Current - Test	5 A
Height [z]	1.7 mm
Lens Type	Flat
Light Emitting Surface (LES) [diameter]	44.8 mm
Lumens/Watt @ Current - Test	109 lm/W
Size / Dimension [x]	55 mm
Size / Dimension [y]	55 mm
Temperature - Test	85 °C
Type	Chip On Board (COB)
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	59 V

Part	Current - Test	Lens Type	Voltage - Forward (Vf) (Typ)	Lumens/Watt @ Current - Test	Light Emitting Surface (LES) [diameter]	CRI (Color Rendering Index)	Height [z]	Temperature - Test	Configuration	Current - Max [Max]	CCT (K)	Viewing Angle	Type	Size / Dimension [x]	Size / Dimension [y]	Color
Luminus Devices Inc. CVM-45-56-95-60-BA42-F5-2	5 A	Flat	59 V	109 lm/W	44.8 mm	95	1.7 mm	85 °C	Square	10 A	5600 K	120 °	Chip On Board (COB)	55 mm	55 mm	Cool White

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Lighting COBs Engines Modules Chip On Board (COB) - White, Cool Square
