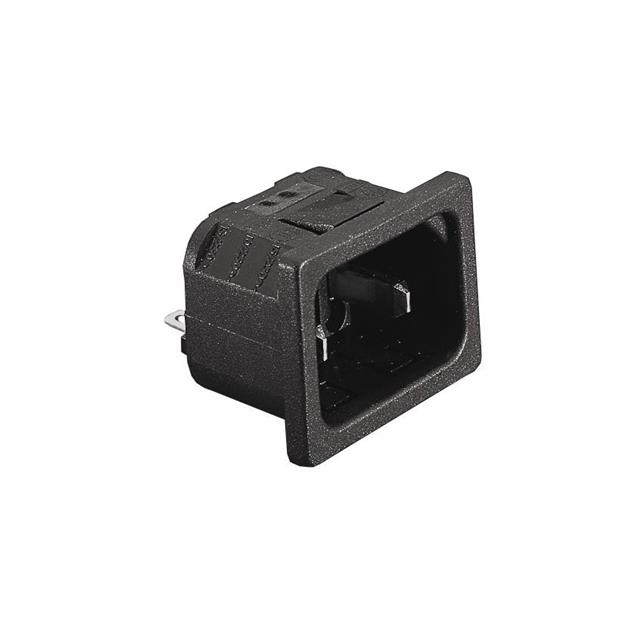

PX0691/15/63

Active

BULGIN LIMITED

CONN POWER M 2 POS SOLDER LUG ST PANEL MOUNT 2 TERMINAL 1 PORT BULK

Search across all available documentation for this part.

Active

BULGIN LIMITED

CONN POWER M 2 POS SOLDER LUG ST PANEL MOUNT 2 TERMINAL 1 PORT BULK

Technical Specifications

Parameters and characteristics for this part

Specification	PX0691/15/63

Accomodates a Fuse	False
Approval Agency	VDE, CSA, UL, ENEC
Connector Style	IEC 320-C18
Connector Type	Male Blades, Receptacle
Current Rating - Appliance Inlet	10 A
Filter Type	Unfiltered - Commercial
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Snap-In
Panel Cutout Dimensions [x]	27.4 mm
Panel Cutout Dimensions [y]	19.8 mm
Panel Thickness [custom]	0.059 in
Panel Thickness [custom]	1.5 mm
Termination	0.25 in
Termination	6.3 mm
Termination	Quick Connect
Voltage Rating - Appliance Inlet	250 VAC

Part	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Approval Agency	Connector Type	Mounting Type	Termination	Current Rating - Appliance Inlet	Filter Type	Panel Thickness	Panel Thickness	Voltage Rating - Appliance Inlet	Material Flammability Rating	Connector Style	Termination	Termination	Panel Thickness [custom]	Panel Thickness [custom]
BULGIN LIMITED PX0691/10/28	19.8 mm	27.4 mm	CSA ENEC UL VDE	Male Blades Receptacle	Panel Mount Snap-In	Solder	10 A	Unfiltered - Commercial	1 mm	0.039 in	250 VAC	UL94 V-0	IEC 320-C18
BULGIN LIMITED PX0691/15/63	19.8 mm	27.4 mm	CSA ENEC UL VDE	Male Blades Receptacle	Panel Mount Snap-In	Quick Connect	10 A	Unfiltered - Commercial			250 VAC	UL94 V-0	IEC 320-C18	0.25 in	6.3 mm	0.059 in	1.5 mm
BULGIN LIMITED PX0691/20/63	19.8 mm	27.4 mm	CSA ENEC UL VDE	Male Blades Receptacle	Panel Mount Snap-In	Quick Connect	10 A	Unfiltered - Commercial	2 mm	0.079 in	250 VAC	UL94 V-0	IEC 320-C18	0.25 in	6.3 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	200	$ 2.55
Newark	Each	1	$ 3.33

General part information

Power Entry Connector Receptacle, Male Blades IEC 320-C18 Panel Mount, Snap-In
