3003-1551-703

Active

Radiall USA, Inc.

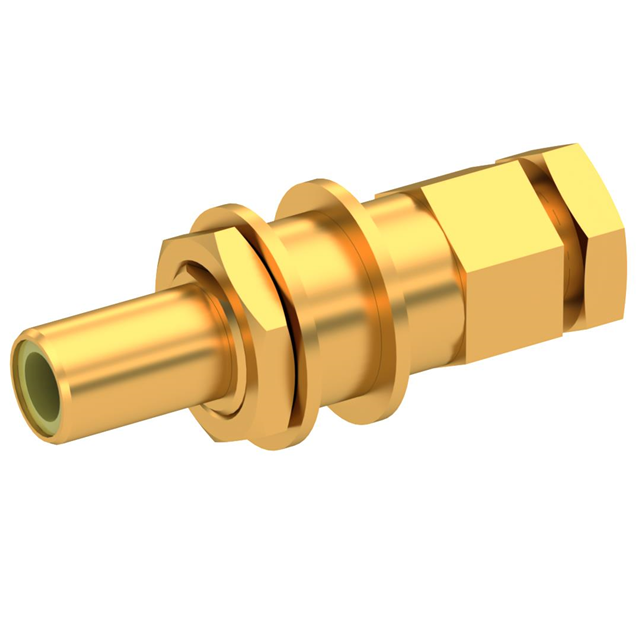

SLB / STRAIGHT JACK MALE CLAMP T

Search across all available documentation for this part.

Active

Radiall USA, Inc.

SLB / STRAIGHT JACK MALE CLAMP T

Technical Specifications

Parameters and characteristics for this part

Specification	3003-1551-703

Body Finish	Gold
Body Material	Brass
Cable Group	RG-174, 188, 316
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	SLB
Connector Type	Male Pin, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	4 GHz
Housing Color	Gold
Impedance	50 Ohms
Insertion Loss	0.3 dB
Mating Cycles	500
Mounting Feature	Bulkhead - Front Side Nut
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Clamp
Voltage Rating	335 V

Part	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Contact Termination	Body Material	Impedance	Connector Style	Mounting Feature	Insertion Loss	Frequency - Max [Max]	Mating Cycles	Connector Type	Dielectric Material	Number of Ports	Housing Color	Center Contact Material	Cable Group	Center Contact Plating	Shield Termination	Voltage Rating	Body Finish	Cable Group
Radiall USA, Inc. 3003-1551-603	-65 ░C	165 °C	Snap-On	Solder	Brass	50 Ohms	SLB	Bulkhead - Front Side Nut	0.3 dB	4 GHz	500	Jack Male Pin	Polytetrafluoroethylene (PTFE)	1	Gold	Brass	188 316 RG-174	Gold	Clamp	335 V	Gold
Radiall USA, Inc. 3003-1551-703	-65 ░C	165 °C	Snap-On	Solder	Brass	50 Ohms	SLB	Bulkhead - Front Side Nut	0.3 dB	4 GHz	500	Jack Male Pin	Polytetrafluoroethylene (PTFE)	1	Gold	Brass	188 316 RG-174	Gold	Clamp	335 V	Gold
Radiall USA, Inc. 3003-1551-002	-65 ░C	165 °C	Snap-On	Solder	Brass	50 Ohms	SLB	Bulkhead - Front Side Nut	0.3 dB	4 GHz	500	Jack Male Pin	Polytetrafluoroethylene (PTFE)	1	Gold	Brass	RG-178	Gold	Clamp	250 VDC	Gold	196
Radiall USA, Inc. 3003-1551-005	-65 ░C	165 °C	Snap-On	Solder	Brass	50 Ohms	SLB	Bulkhead - Front Side Nut	0.3 dB	4 GHz	500	Jack Male Pin	Polytetrafluoroethylene (PTFE)	1	Gold	Brass	RD-178 196 Double Braid	Gold	Clamp	250 VDC	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 25.47

General part information

SLB Connector Jack, Male Pin 50 Ohms Panel Mount Solder
