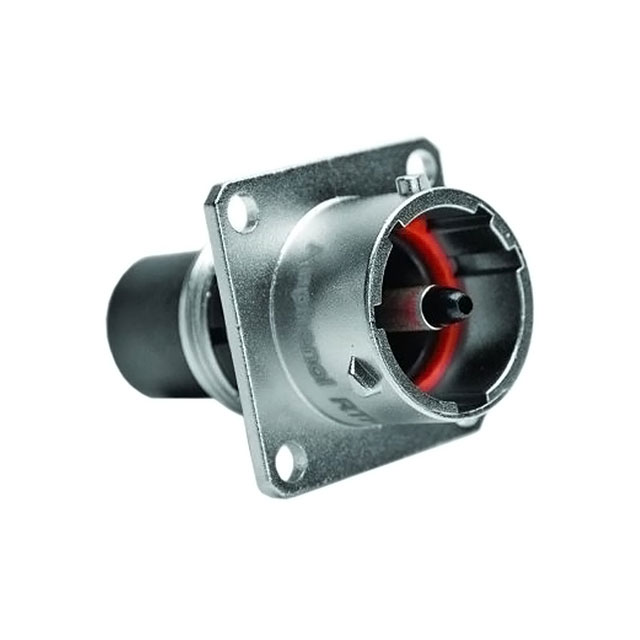

RTHP0121PN-16C

Active

Amphenol Sine Systems Corp

CONN RCPT MALE 1POS SILVER CRIMP

Search across all available documentation for this part.

Active

Amphenol Sine Systems Corp

CONN RCPT MALE 1POS SILVER CRIMP

Technical Specifications

Parameters and characteristics for this part

Part	Contact Finish - Mating	Shell Finish	Primary Material	Mounting Feature	Shielding	Number of Positions	Current Rating (Amps)	Shell Material	Voltage Rating	Orientation	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Termination	Shell Size - Insert	Color	Fastening Type	Connector Type
Amphenol Sine Systems Corp RTHP0121PN-H1	Silver	Nickel	Metal	Flange	Shielded	1	86 A	Zinc Die Cast	630 VAC/DC	N	125 °C	-40 °C	IP67 - Dust Tight Waterproof	Solder Eyelet(s)	12-1	Silver	Bayonet Lock	Male Pins Receptacle
Amphenol Sine Systems Corp RTHP0161PN-H1	Silver	Nickel	Metal	Flange	Shielded	1	180 A	Zinc Die Cast	630 VAC/DC	N	125 °C	-40 °C	IP67 - Dust Tight Waterproof	Solder Eyelet(s)	16-1	Silver	Bayonet Lock	Male Pins Receptacle
Amphenol Sine Systems Corp RTHP0121PN-16C	Silver	Nickel	Metal	Flange	Shielded	1	86 A	Zinc Die Cast	630 VAC/DC	N	125 °C	-40 °C	IP67 - Dust Tight Waterproof	Crimp	12-1	Silver	Bayonet Lock	Male Pins Receptacle

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 15.39

General part information

1 Position Circular Connector Receptacle, Male Pins Crimp
