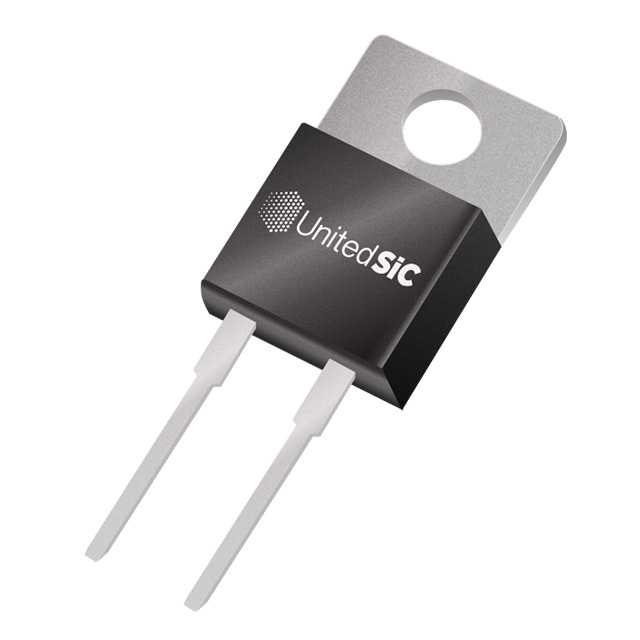

UJ3D1202TS

Active

Qorvo

DIODE SIL CARB 1.2KV 2A TO220-2

Search across all available documentation for this part.

Active

Qorvo

DIODE SIL CARB 1.2KV 2A TO220-2

Technical Specifications

Parameters and characteristics for this part

Specification	UJ3D1202TS

Capacitance @ Vr, F	109 pF
Current - Average Rectified (Io)	2 A
Current - Reverse Leakage @ Vr	22 µA
Mounting Type	Through Hole
Operating Temperature - Junction [Max]	175 ░C
Operating Temperature - Junction [Min]	-55 C
Package / Case	TO-220-2
Reverse Recovery Time (trr)	0 ns
Speed	No Recovery Time
Supplier Device Package	TO-220-2
Technology	SiC (Silicon Carbide) Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	1.2 kV
Voltage - Forward (Vf) (Max) @ If	1.6 V

Part	Current - Average Rectified (Io)	Reverse Recovery Time (trr)	Supplier Device Package	Package / Case	Technology	Speed	Current - Reverse Leakage @ Vr	Voltage - Forward (Vf) (Max) @ If	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Mounting Type	Voltage - DC Reverse (Vr) (Max) [Max]	Capacitance @ Vr, F
Qorvo UJ3D1202TS	2 A	0 ns	TO-220-2	TO-220-2	SiC (Silicon Carbide) Schottky	No Recovery Time	22 µA	1.6 V	175 ░C	-55 C	Through Hole	1.2 kV	109 pF

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode 1200 V 2A Through Hole TO-220-2

Technical documentation and resources

No documents available
