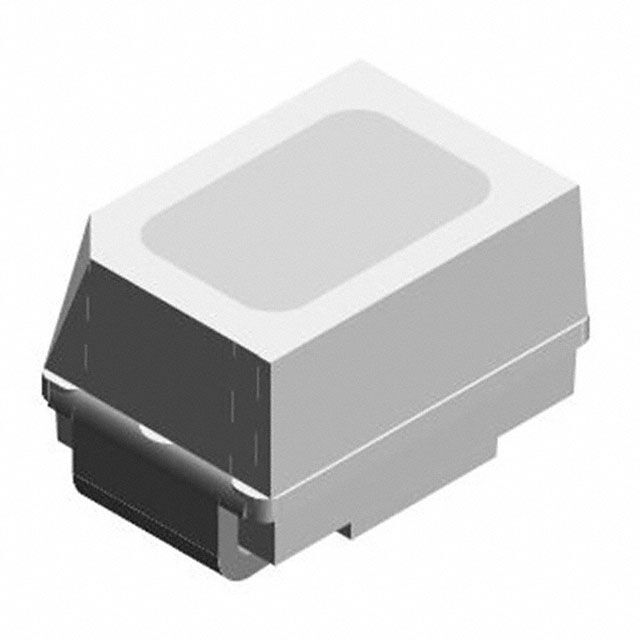

VLMK20K1L2-GS08
ActiveVishay General Semiconductor - Diodes Division
LED AMBER CLEAR SMD MINILED SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
VLMK20K1L2-GS08
ActiveVishay General Semiconductor - Diodes Division
LED AMBER CLEAR SMD MINILED SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | VLMK20K1L2-GS08 |
|---|---|
| Color | Amber |
| Configuration | Standard |
| Current - Test | 2 mA |
| Height (Max) [Max] [z] | 1.4 mm |
| Lens Size [x] | 1.5 mm |
| Lens Size [y] | 0.9 mm |
| Lens Style | Rectangle with Flat Top |
| Lens Transparency | Clear |
| Millicandela Rating | 12.55 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 2-SMD, J-Lead |
| Size / Dimension [x] | 2.2 mm |
| Size / Dimension [y] | 1.4 mm |
| Supplier Device Package | SMD MiniLED |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 1.8 V |
| Wavelength - Dominant | 622 nm |
| Wavelength - Peak | 615 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.34 | |
| 10 | $ 0.23 | |||
| 100 | $ 0.16 | |||
| 500 | $ 0.13 | |||
| 1000 | $ 0.12 | |||
| Digi-Reel® | 1 | $ 0.34 | ||
| 10 | $ 0.23 | |||
| 100 | $ 0.16 | |||
| 500 | $ 0.13 | |||
| 1000 | $ 0.12 | |||
| Tape & Reel (TR) | 3000 | $ 0.11 | ||
| 3000 | $ 0.11 | |||
| 6000 | $ 0.10 | |||
| 6000 | $ 0.10 | |||
| 9000 | $ 0.10 | |||
| 15000 | $ 0.09 | |||
| 15000 | $ 0.09 | |||
| 21000 | $ 0.09 | |||
| 30000 | $ 0.09 | |||
| 30000 | $ 0.08 | |||
| 75000 | $ 0.08 | |||
| 75000 | $ 0.09 | |||
Description
General part information
VLMK20 Series
Amber 622nm LED Indication - Discrete 1.8V 2-SMD, J-Lead
