H2U36D2K1B0100
ActiveUnictron Technologies Corporation

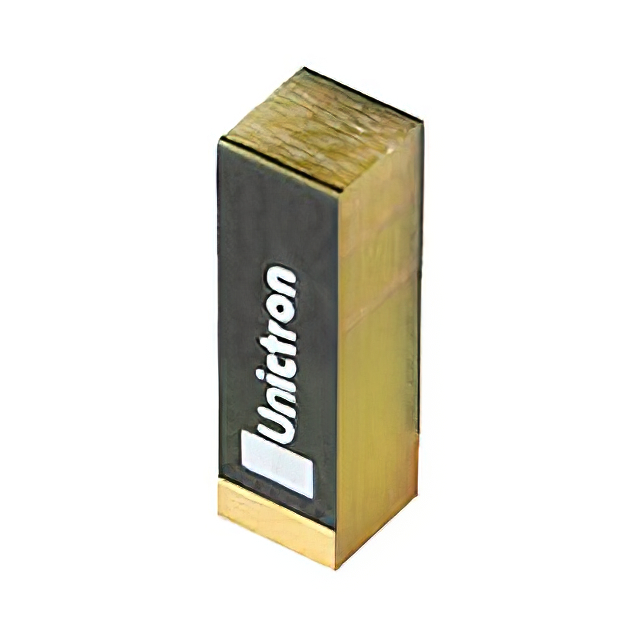

PILLAR CHIP ANTENNA WIFI/BT 2400
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
H2U36D2K1B0100
ActiveUnictron Technologies Corporation
PILLAR CHIP ANTENNA WIFI/BT 2400
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | H2U36D2K1B0100 |
|---|---|
| Antenna Type | Chip |
| Applications | Wi-Fi, ISM, 802.11b/g/n, Bluetooth |
| Frequency Range [Max] | 2.5 GHz |
| Frequency Range [Min] | 2.4 GHz |
| Gain | 3.4 dBi |
| Height (Max) [Max] | 10 mm |
| Height (Max) [Max] | 0.394 in |
| Mounting Type | Surface Mount |
| Number of Bands | 1 |
| Power - Max [Max] | 2 W |
| RF Family/Standard | WiFi, Bluetooth, General ISM |
| Termination | Solder |
| VSWR | 2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.58 | |
| Digi-Reel® | 1 | $ 1.58 | ||
| Tape & Reel (TR) | 500 | $ 0.94 | ||
| 1000 | $ 0.78 | |||
| 2500 | $ 0.72 | |||
| 5000 | $ 0.70 | |||
| 12500 | $ 0.67 | |||
Description
General part information
H2U36D2 Series
RF ANTENNA 802.11b/g/n, Bluetooth, ISM, Wi-Fi Chip Solder Surface Mount
