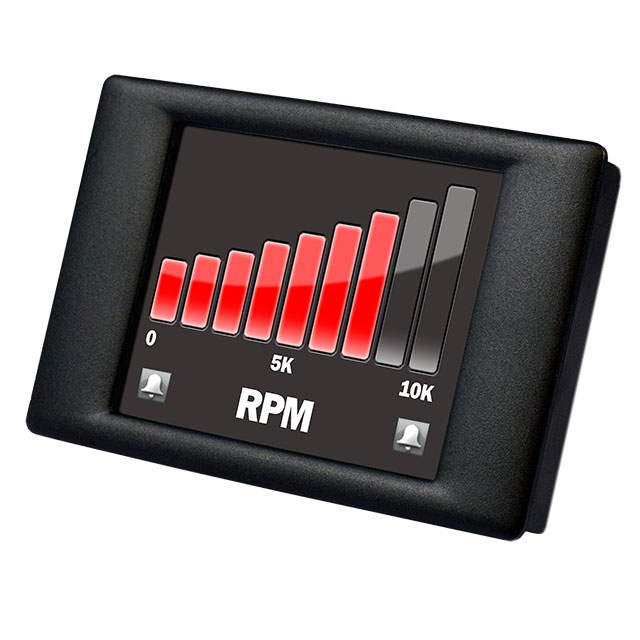

SGD 24-M
ActiveLascar Electronics
2.4" PROG PNL METER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SGD 24-M |
|---|---|
| Display Type | TFT - Color (Touch) |
| Measuring Range [Max] | 40 VDC |
| Measuring Range [Min] | 0 V |
| Measuring Type | Voltage |
| Operating Temperature [Max] | 40 °C |
| Operating Temperature [Min] | 0 °C |
| Panel Cutout Dimensions [x] | 74 mm |
| Panel Cutout Dimensions [y] | 46 mm |
| Termination Style | Screw Terminal |
| Type | Voltmeter |
| Voltage - Supply [Max] | 30 VDC |
| Voltage - Supply [Min] | 4 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 120.99 | |
| 100 | $ 92.38 | |||
Description
General part information
SGD 24 Series
Voltmeter TFT - Color (Touch) Display Panel Mount
