XG8W-1441

Active

Omron Electronics Inc-EMC Div

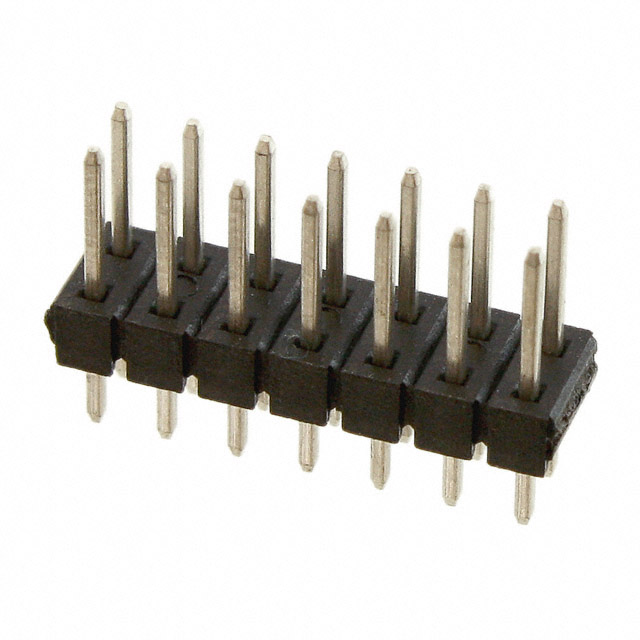

CONN HEADER VERT 14POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet XGx and XJ8 Guide +1

XG8W-1441

Active

Omron Electronics Inc-EMC Div

CONN HEADER VERT 14POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet XGx and XJ8 Guide +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	XG8W-1441

Connector Type	Header
Contact Finish - Post	Tin
Contact Finish Thickness - Post	2 çm
Contact Finish Thickness - Post	78.7 çin
Contact Length - Mating	6 mm
Contact Length - Mating	0.236 in
Contact Length - Post	0.118 in
Contact Length - Post	3 mm
Contact Material	Brass, Nickel
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height [z]	0.098 in
Insulation Height [z]	2.5 mm
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	14
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Overall Contact Length	0.453 in
Overall Contact Length	11.5 mm
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	300 VDC

XG8W Series

Part	Insulation Color	Contact Length - Mating	Contact Length - Mating	Number of Positions	Insulation Height [z]	Insulation Height [z]	Insulation Material	Contact Type	Style	Contact Finish - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Material Flammability Rating	Voltage Rating	Pitch - Mating	Pitch - Mating	Shrouding	Contact Material	Contact Finish - Post	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Fastening Type	Contact Shape	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Rows	Contact Length - Post	Contact Length - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Mounting Type	Overall Contact Length	Overall Contact Length	Number of Positions Loaded	Connector Type	Termination	Current Rating (Amps)
Omron Electronics Inc-EMC Div XG8W-2631	Black	6 mm	0.236 in	26	0.098 in	2.5 mm	Polybutylene Terephthalate (PBT) Glass Filled	Male Pin	Board to Board Cable	Gold	105 ░C	-55 °C	UL94 V-0	300 VDC	0.1 in	2.54 mm	Unshrouded	Brass Nickel	Gold	2.54 mm	0.1 in	Push-Pull	Square	0.15 µm	5.9 µin	2	0.118 in	3 mm	0.15 µm	5.9 µin	Through Hole	0.453 in	11.5 mm	All	Header	Solder	3 A
Omron Electronics Inc-EMC Div XG8W-1441	Black	6 mm	0.236 in	14	0.098 in	2.5 mm	Polybutylene Terephthalate (PBT) Glass Filled	Male Pin	Board to Board Cable		105 ░C	-55 °C	UL94 V-0	300 VDC	0.1 in	2.54 mm	Unshrouded	Brass Nickel	Tin	2.54 mm	0.1 in	Push-Pull	Square			2	0.118 in	3 mm	2 çm	78.7 çin	Through Hole	0.453 in	11.5 mm	All	Header	Solder	3 A
Omron Electronics Inc-EMC Div XG8W-4041	Black	6 mm	0.236 in	40	0.098 in	2.5 mm	Polybutylene Terephthalate (PBT) Glass Filled	Male Pin	Board to Board Cable		105 ░C	-55 °C	UL94 V-0	300 VDC	0.1 in	2.54 mm	Unshrouded	Brass Nickel	Tin	2.54 mm	0.1 in	Push-Pull	Square			2	0.118 in	3 mm	2 çm	78.7 çin	Through Hole	0.453 in	11.5 mm	All	Header	Solder	3 A
Omron Electronics Inc-EMC Div XG8W-1031	Black	6 mm	0.236 in	10	0.098 in	2.5 mm	Polybutylene Terephthalate (PBT) Glass Filled	Male Pin	Board to Board Cable	Gold	105 ░C	-55 °C	UL94 V-0	300 VDC	0.1 in	2.54 mm	Unshrouded	Brass Nickel	Gold	2.54 mm	0.1 in	Push-Pull	Square	0.15 µm	5.9 µin	2	0.118 in	3 mm	0.15 µm	5.9 µin	Through Hole	0.453 in	11.5 mm	All	Header	Solder	3 A
Omron Electronics Inc-EMC Div XG8W-3431	Black	6 mm	0.236 in	34	0.098 in	2.5 mm	Polybutylene Terephthalate (PBT) Glass Filled	Male Pin	Board to Board Cable	Gold	105 ░C	-55 °C	UL94 V-0	300 VDC	0.1 in	2.54 mm	Unshrouded	Brass Nickel	Gold	2.54 mm	0.1 in	Push-Pull	Square	0.15 µm	5.9 µin	2	0.118 in	3 mm	0.15 µm	5.9 µin	Through Hole	0.453 in	11.5 mm	All	Header	Solder	3 A
