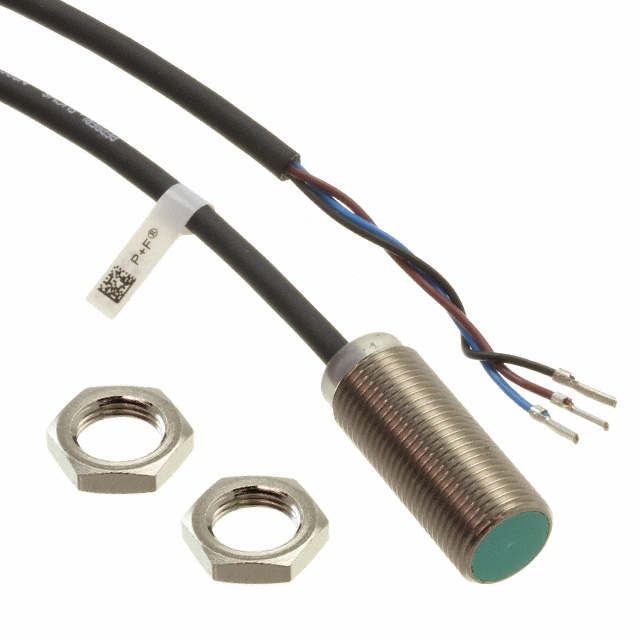

NBB2-12GM30-E2-2M-PUR

Obsolete

PEPPERL+FUCHS

INDUCTIVE SEN 2MM PNP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

NBB2-12GM30-E2-2M-PUR

Obsolete

PEPPERL+FUCHS

INDUCTIVE SEN 2MM PNP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	NBB2-12GM30-E2-2M-PUR

Indicator [custom]	LED
Ingress Protection	IP67
Material - Body	Nickel-Plated Brass
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Output Type	PNP-NO, 3-Wire
Package / Case	Cylinder, Threaded - M12
Sensing Distance	0.079 in
Sensing Distance	2 mm
Sensor Type	Inductive
Shielding	Unshielded
Termination Style	Cable
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	10 VDC

NBB2-12 Series

Part	Shielding	Material - Body	Sensor Type	Sensing Distance	Sensing Distance	Output Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Indicator [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Ingress Protection	Termination Style
PEPPERL+FUCHS NBB2-12GM60-A2-V1	Unshielded	Nickel-Plated Brass	Inductive	0.079 in	2 mm	4-Wire PNP-NC/NO	30 VDC	10 VDC	LED	70 °C	-25 °C	Cylinder Threaded - M12	IP67	Connector
PEPPERL+FUCHS NBB2-12GM50-E2	Unshielded	Nickel-Plated Brass	Inductive	0.079 in	2 mm	PNP-NO 3-Wire	30 VDC	10 VDC	LED	70 °C	-25 °C	Cylinder Threaded - M12	IP67	Cable
PEPPERL+FUCHS NBB2-12GM50-E2-C3-V1	Unshielded	Polytetrafluoroethylene (PTFE)	Inductive	0.079 in	2 mm	PNP-NO 3-Wire	30 VDC	10 VDC	LED	70 °C	-25 °C	Cylinder Threaded - M12	IP67	Connector
PEPPERL+FUCHS NBB2-12GM50-E2-C-V1	Unshielded	Polytetrafluoroethylene (PTFE)	Inductive	0.079 in	2 mm	PNP-NO 3-Wire	30 VDC	10 VDC	LED	70 °C	-25 °C	Cylinder Threaded - M12	IP67	Connector
PEPPERL+FUCHS NBB2-12GM30-E2-V1	Unshielded	Nickel-Plated Brass	Inductive	0.079 in	2 mm	PNP-NO 3-Wire	30 VDC	10 VDC	LED	70 °C	-25 °C	Cylinder Threaded - M12	IP67	Connector
PEPPERL+FUCHS NBB2-12GM30-E2-2M-PUR	Unshielded	Nickel-Plated Brass	Inductive	0.079 in	2 mm	PNP-NO 3-Wire	30 VDC	10 VDC	LED	70 °C	-25 °C	Cylinder Threaded - M12	IP67	Cable
PEPPERL+FUCHS NBB2-12GM50-E2-V1	Unshielded	Nickel-Plated Brass	Inductive	0.079 in	2 mm	PNP-NO 3-Wire	30 VDC	10 VDC	LED	70 °C	-40 °C	Cylinder Threaded - M12	IP67	Connector
PEPPERL+FUCHS NBB2-12GM50-E0-V1	Unshielded	Nickel-Plated Brass	Inductive	0.079 in	2 mm	NPN-NO 3-Wire	30 VDC	10 VDC	LED	70 °C	-25 °C	Cylinder Threaded - M12	IP67	Connector

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

NBB2-12 Series

INDUCTIVE SEN 2MM PNP

Documents

Technical documentation and resources
