R30-1610600

Active

Harwin Inc.

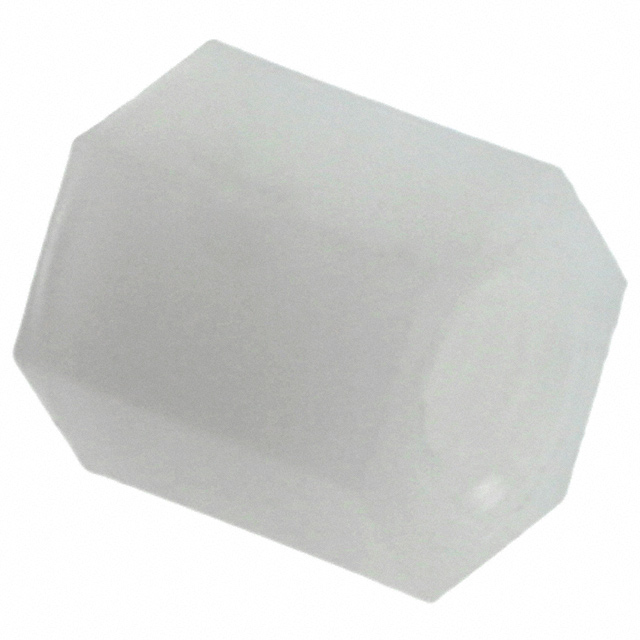

6.00MM M3 METRIC THREADED HEX PLASTIC SPACER/PILLAR ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Harwin Inc.

6.00MM M3 METRIC THREADED HEX PLASTIC SPACER/PILLAR ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Part	Type	Gender	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Between Board Height	Between Board Height	Color	Screw, Thread Size	Length - Overall [x]	Length - Overall [x]	Material	Threaded/Unthreaded	Between Board Height [z]	Between Board Height [z]	Length - Overall
Harwin Inc. R30-1611200	Hex Standoff	Female	0.217 in	5.5 mm	0.472 in	12 mm	Natural	M3x0.5	12 mm	0.472 in	Nylon	Threaded
Harwin Inc. R30-1610600	Hex Standoff	Female	0.217 in	5.5 mm	0.236 in	6 mm	Natural	M3x0.5	6 mm	0.236 in	Nylon	Threaded
Harwin Inc. R30-1611400	Hex Standoff	Female	0.217 in	5.5 mm	0.551 in	14 mm	Natural	M3x0.5	14 mm	0.551 "	Nylon	Threaded
Harwin Inc. R30-1611600	Hex Standoff	Female	0.217 in	5.5 mm			Natural	M3x0.5	16 mm	0.63 "	Nylon	Threaded	16 mm	0.63 in
Harwin Inc. R30-1611800	Hex Standoff	Female	0.217 in	5.5 mm	0.709 in	18 mm	Natural	M3x0.5	18 mm	0.709 "	Nylon	Threaded
Harwin Inc. R30-1610900	Hex Standoff	Female	0.217 in	5.5 mm	0.354 in	9 mm	Natural	M3x0.5	9 mm	0.354 in	Nylon	Threaded
Harwin Inc. R30-1611500	Hex Standoff	Female	0.217 in	5.5 mm	0.591 in	15 mm	Natural	M3x0.5		0.591 in	Nylon	Threaded			15 mm
Harwin Inc. R30-1610700	Hex Standoff	Female	0.217 in	5.5 mm	0.276 in	7 mm	Natural	M3x0.5	7 mm	0.276 in	Nylon	Threaded
Harwin Inc. R30-1611000	Hex Standoff	Female	0.217 in	5.5 mm	0.394 in	10 mm	Natural	M3x0.5	10 mm	0.394 "	Nylon	Threaded
Harwin Inc. R30-1611100	Hex Standoff	Female	0.217 in	5.5 mm	0.433 in	11 mm	Natural	M3x0.5	11 mm	0.433 in	Nylon	Threaded

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Hex Standoff Threaded M3x0.5 Nylon 0.236" (6.00mm) Natural

Technical documentation and resources
