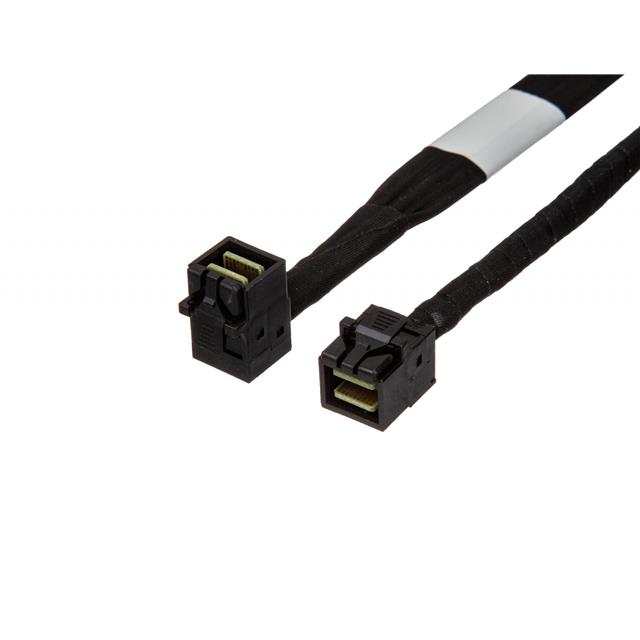

AMPH-4343RA-475

Active

Pactech

SFF8643 STRAIGHT PIN-OUT 1 TO 1

Search across all available documentation for this part.

Active

Pactech

SFF8643 STRAIGHT PIN-OUT 1 TO 1

Technical Specifications

Parameters and characteristics for this part

Specification	AMPH-4343RA-475

Cable Connectors	MiniSAS HD
Cable Type	Round
Color	Black
Connector Type	Plug to Plug
Fastening Type	Latch Lock
Features	Amphenol SFF-8087 Connectors, 12Gbps
Frequency - Max [Max]	12 Gbps
Gender	Male to Male
Length	475 mm
Length	1.56 ft
Number of Positions	36
Shielding	Shielded
Usage	Internal
Wire Gauge	30 AWG

Part	Shielding	Color	Fastening Type	Cable Connectors	Length	Length	Number of Positions	Usage	Gender	Features	Cable Type	Connector Type	Length [x]	Length [x]	Wire Gauge	Frequency - Max [Max]	Length [x]
Pactech AMPH-4343-SL-035	Shielded	Black	Latch Lock	miniSAS HD 4i	1.15 ft	350 mm	36	Internal	Male to Male	12Gbps SAS3.0 Amphenol SFF-8643 Connectors	Round	Plug to Plug
Pactech AMPH-4343-050	Shielded	Black	Latch Lock	miniSAS HD 4i			36	Internal	Male to Male	12Gbps SAS3.0 Amphenol SFF-8643 Connectors	Round	Plug to Plug	1.64 ft	500 mm
Pactech AMPH-4343RA-475	Shielded	Black	Latch Lock	MiniSAS HD	1.56 ft	475 mm	36	Internal	Male to Male	12Gbps Amphenol SFF-8087 Connectors	Round	Plug to Plug			30 AWG	12 Gbps
Pactech AMPH-4343-025	Shielded	Black	Latch Lock	miniSAS HD 4i			36	Internal	Male to Male	12Gbps SAS3.0 Amphenol SFF-8643 Connectors	Round	Plug to Plug	9.84 in	250 mm			9.843 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

36 Position MiniSAS HD Plug to Plug 1.56' (475.00mm) Black Shielded
