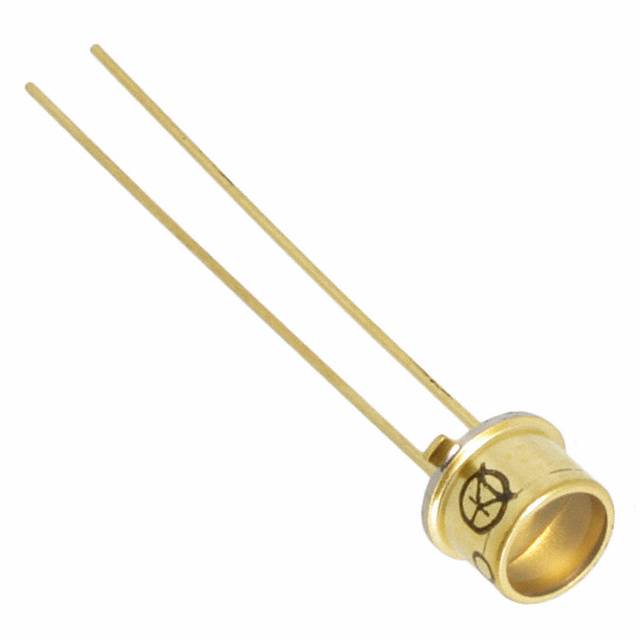

OP133W

Active

TT Electronics/Optek Technology

EMITTER IR 935NM 100MA TO-46

Search across all available documentation for this part.

Active

TT Electronics/Optek Technology

EMITTER IR 935NM 100MA TO-46

Technical Specifications

Parameters and characteristics for this part

Specification	OP133W

Current - DC Forward (If) (Max) [Max]	100 mA
Mounting Type	Through Hole
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 °C
Orientation	Top View
Package / Case	TO-46-2 Metal Can
Radiant Intensity (Ie) Min @ If [Min]	5 mW/cm˛
Type	Infrared (IR)
Viewing Angle	50 °
Voltage - Forward (Vf) (Typ)	1.75 V
Wavelength	935 nm

Part	Orientation	Wavelength	Package / Case	Radiant Intensity (Ie) Min @ If [Min]	Mounting Type	Type	Current - DC Forward (If) (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Viewing Angle	Voltage - Forward (Vf) (Typ)
TT Electronics/Optek Technology OP133W	Top View	935 nm	TO-46-2 Metal Can	5 mW/cm˛	Through Hole	Infrared (IR)	100 mA	-65 °C	125 °C	50 °	1.75 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Infrared (IR) Emitter 935nm 1.75V 100mA 5mW/cm˛ @ 100mA 50° TO-46-2 Metal Can
