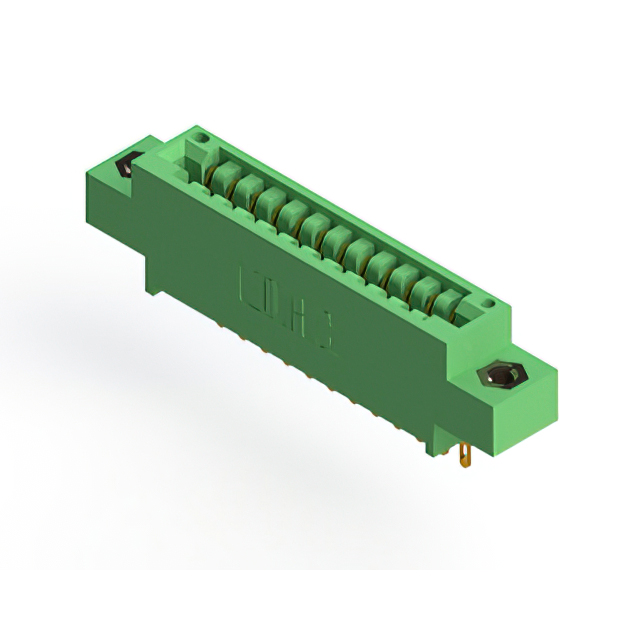

346-012-500-608

Active

EDAC Inc.

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 12 CONTACTS, PANEL MOUNT, STRAIGHT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Enhanced Product Overview EN +1

346-012-500-608

Active

EDAC Inc.

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 12 CONTACTS, PANEL MOUNT, STRAIGHT

Deep-Dive with AI

DocumentsDatasheet Enhanced Product Overview EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	346-012-500-608

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Single Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Top Mount Opening, 4-40, Threaded Insert
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions	12
Number of Positions/Bay/Row [custom]	12
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.125 in
Pitch [x]	3.18 mm
Read Out	Single
Termination	Solder Eyelet(s)
Termination Rows	1

346-012 Series

...

Part	Read Out	Card Type	Termination Rows	Pitch [x]	Pitch [x]	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Contact Material	Termination	Number of Rows	Contact Type	Contact Finish	Number of Positions/Bay/Row [custom]	Material - Insulation	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Features	Color	Gender	Flange Feature	Flange Feature
EDAC Inc. 346-012-556-204	Dual	Non Specified - Dual Edge	2	0.125 in	3.18 mm	3.96 mm	Flush Mount Top Opening Unthreaded	0.156 in	Copper Alloy	Solder	2	Cantilever	Gold	6	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	12	-40 °C	105 ░C	10 Áin	0.25 Ám	Board Edge Straddle Mount	Card Extender	Green	Female
EDAC Inc. 346-012-520-808	Dual	Non Specified - Dual Edge	2	0.125 in	3.18 mm		4-40 Threaded Insert Top Mount Opening		Copper Alloy	Solder	2	Cantilever	Gold	6	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	12	-40 °C	105 ░C	10 Áin	0.25 Ám	Through Hole		Green	Female
EDAC Inc. 346-012-541-808	Dual	Non Specified - Dual Edge	2	0.125 in	3.18 mm		4-40 Threaded Insert Top Mount Opening		Copper Alloy	Wire Wrap	2	Cantilever	Gold	6	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	12	-40 °C	105 ░C	10 Áin	0.25 Ám	Through Hole		Green	Female
EDAC Inc. 346-012-526-103	Single	Non Specified - Single Edge	1	0.125 in	3.18 mm	2.95 mm	Floating Bobbin Flush Mount	0.116 in	Copper Alloy	Solder	1	Cantilever	Gold	12	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	12	-40 °C	105 ░C	10 Áin	0.25 Ám	Through Hole		Green	Female
EDAC Inc. 346-012-526-104	Single	Non Specified - Single Edge	1	0.125 in	3.18 mm	3.96 mm	Flush Mount Top Opening Unthreaded	0.156 in	Copper Alloy	Solder	1	Cantilever	Gold	12	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	12	-40 °C	105 ░C	10 Áin	0.25 Ám	Through Hole		Green	Female
EDAC Inc. 346-012-500-608	Single	Non Specified - Single Edge	1	0.125 in	3.18 mm		4-40 Threaded Insert Top Mount Opening		Copper Alloy	Solder Eyelet(s)	1	Cantilever	Gold	12	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	12	-40 °C	105 ░C	10 Áin	0.25 Ám	Through Hole		Green	Female
EDAC Inc. 346-012-526-158	Single	Non Specified - Single Edge	1	0.125 in	3.18 mm		4-40 Flush Mount Threaded Insert Top Opening		Copper Alloy	Solder	1	Cantilever	Gold	12	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	12	-40 °C	105 ░C	10 Áin	0.25 Ám	Through Hole	Card Guides	Green	Female
EDAC Inc. 346-012-526-602	Single	Non Specified - Single Edge	1	0.125 in	3.18 mm				Copper Alloy	Solder	1	Cantilever	Gold	12	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	12	-40 °C	105 ░C	10 Áin	0.25 Ám	Through Hole		Green	Female	3.25 mm	0.128 in
EDAC Inc. 346-012-521-104	Single	Non Specified - Single Edge	1	0.125 in	3.18 mm	3.96 mm	Flush Mount Top Opening Unthreaded	0.156 in	Copper Alloy	Solder	1	Cantilever	Gold	12	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	12	-40 °C	105 ░C	10 Áin	0.25 Ám	Through Hole		Green	Female
EDAC Inc. 346-012-555-201	Dual	Non Specified - Dual Edge	2	0.125 in	3.18 mm				Copper Alloy	Solder Eyelet(s)	2	Cantilever	Gold	6	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	12	-40 °C	105 ░C	10 Áin	0.25 Ám	Board Edge Straddle Mount	Card Extender	Green	Female

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 13.80
Newark	Each	1	$ 13.85
		100	$ 10.76
		250	$ 9.02
		500	$ 7.42
		1000	$ 5.30

Description

General part information

346-012 Series

12 Position Female Connector Non Specified - Single Edge Gold 0.125" (3.18mm) Green

Documents

Technical documentation and resources

Datasheet

Enhanced Product Overview EN

Datasheet

Drawing EN

Datasheet
