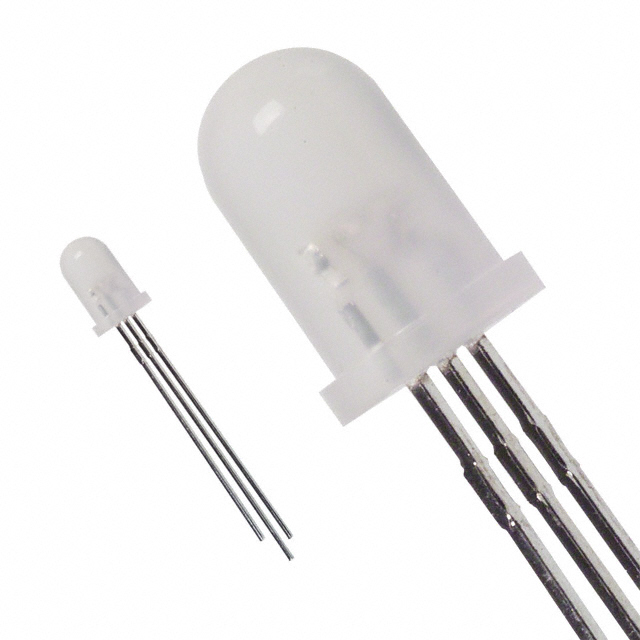

SSL-LX5097IGW

Active

Lumex Opto/Components Inc.

LED GRN/RED DIFFUSED T-1 3/4 T/H

Search across all available documentation for this part.

Active

Lumex Opto/Components Inc.

LED GRN/RED DIFFUSED T-1 3/4 T/H

Technical Specifications

Parameters and characteristics for this part

Part	Lens Color	Lens Style	Millicandela Rating [custom]	Millicandela Rating [custom]	Current - Test	Package / Case	Supplier Device Package	Lens Transparency	Viewing Angle	Configuration	Voltage - Forward (Vf) (Typ)	Mounting Type	Lens Size	Lens Size	Color	Height (Max) [Max] [z]	Wavelength - Peak	Millicandela Rating
Lumex Opto/Components Inc. SSL-LX5097IGW-CA	White	Round with Domed Top	20 mcd	20 mcd	20 mA 20 mA	Radial - 3 Leads	T-1 3/4	Diffused	60 °	Common Anode	2.1 V 2.1 V	Through Hole	T-1 3/4	5 mm	Green Red	8.6 mm	565 nm 635 nm
Lumex Opto/Components Inc. SSL-LX5097IGW	White	Round with Domed Top	20 mcd	20 mcd	20 mA 20 mA	Radial - 3 Leads	T-1 3/4	Diffused	60 °	Common Cathode	2.1 V 2.1 V	Through Hole	T-1 3/4	5 mm	Green Red	8.6 mm	565 nm 635 nm
Lumex Opto/Components Inc. SSL-LX5097SISGSYC	Colorless	Round with Domed Top			20 mA 20 mA 20 mA	Radial	T-1 3/4	Clear	50 °	Common Cathode	2 V 2.1 V 2.2 V	Through Hole	T-1 3/4	5 mm	Green Red Yellow	8.6 mm	565 nm 585 nm 636 nm	65 mcd 450 mcd 700 mcd

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Green, Red LED Indication - Discrete 2.1V Green, 2.1V Red Radial - 3 Leads
