H2087-01

Active

Harwin Inc.

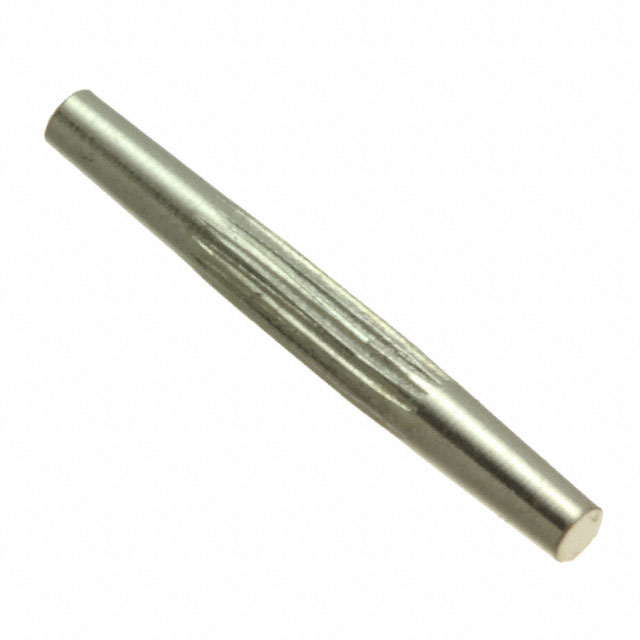

VERTICAL THROUGHBOARD TERMINAL PIN, SPLINE PIN ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Harwin Inc.

VERTICAL THROUGHBOARD TERMINAL PIN, SPLINE PIN ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Part	Board Thickness	Board Thickness	Insulation	Contact Material	Mounting Type	Mounting Hole Diameter [Max]	Mounting Hole Diameter [Max]	Mounting Hole Diameter [Min]	Mounting Hole Diameter [Min]	Terminal Style	Terminal Type	Contact Finish	Termination	Length - Overall	Length - Overall [x]
Harwin Inc. H2087-01	0.094 in	2.39 mm	Non-Insulated	Brass	Through Hole	1.35 mm	0.053 in	1.3 mm	0.051 in	Double End	PC Pin	Tin	Staking Flare	11.9 mm	0.469 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	3000	$ 0.21
Newark	Each	1000	$ 0.23

General part information

PC Pin Terminal Connector Through Hole Tin
