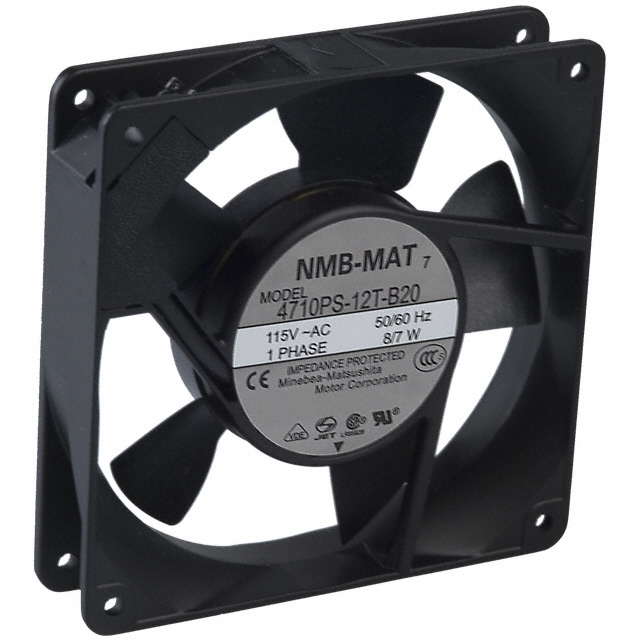

4710PS-12T-B20-A00

Obsolete

NMB TECHNOLOGIES

FAN AXIAL 119X25.5MM 115VAC TERM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsFans & Blowers Catalog Fan Agency Approvals +1

4710PS-12T-B20-A00

Obsolete

NMB TECHNOLOGIES

FAN AXIAL 119X25.5MM 115VAC TERM

Deep-Dive with AI

DocumentsFans & Blowers Catalog Fan Agency Approvals +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	4710PS-12T-B20-A00

Air Flow	53 CFM
Air Flow	1.48 mł/min
Approval Agency	UL, CE, VDE, CSA
Bearing Type	Ball
Current Rating (Amps)	0.09 A
Fan Type	Tubeaxial
Lifetime @ Temp.	50000 Hrs
Material - Blade	Polycarbonate (PC), Fiberglass Reinforced
Material - Frame	Aluminum
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	7 W
RPM	2000 RPM
Size / Dimension [x]	119 mm
Size / Dimension [y]	119 mm
Static Pressure	21.5 Pa
Static Pressure	0.086 in H2O
Termination	2 Terminals
Voltage - Rated	115 VAC
Weight	362.87 g
Weight	0.8 lb
Width [x]	25.5 mm

4710PS Series

Part	Approval Agency	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Lifetime @ Temp.	Noise	Static Pressure	Static Pressure	Weight	Weight	Size / Dimension [y]	Size / Dimension [x]	Bearing Type	Power (Watts)	Termination	Fan Type	Width [x]	Air Flow	Air Flow	Voltage - Rated	Material - Frame	Current Rating (Amps)	RPM	Material - Blade
NMB TECHNOLOGIES 4710PS-23T-B30-A00	CE CSA UL VDE	70 °C	70 °C	-10 °C	-10 °C	50000 Hrs	38 dB(A)	40 Pa	0.16 in H2O	362.87 g	0.8 lb	119 mm	119 mm	Ball	11 W	2 Terminals	Tubeaxial	25.5 mm	1.98 mł/min	70.6 CFM	230 VAC	Aluminum	0.09 A	2700 RPM	Fiberglass Reinforced Polycarbonate (PC)
NMB TECHNOLOGIES 4710PS-22T-B30-B00	CE CSA UL VDE	70 °C	70 °C	-10 °C	-10 °C	50000 Hrs	38 dB(A)	41.1 Pa	0.165 in H2O	362.87 g	0.8 lb	119 mm	119 mm	Ball	11 W	2 Terminals	Tubeaxial	25.5 mm	1.98 mł/min	70.6 CFM	220 VAC	Aluminum		2700 RPM	Fiberglass Reinforced Polycarbonate (PC)
NMB TECHNOLOGIES 4710PS-10T-B20-B00	CE CSA UL VDE	70 °C	70 °C	-10 °C	-10 °C	50000 Hrs		21.5 Pa	0.086 in H2O	362.87 g	0.8 lb	119 mm	119 mm	Ball	7 W	2 Terminals	Tubeaxial	25.5 mm	1.48 mł/min	53 CFM	100 VAC	Aluminum	100 mA	2100 RPM	Fiberglass Reinforced Polycarbonate (PC)
NMB TECHNOLOGIES 4710PS-22T-B20-B00	CE CSA UL VDE	70 °C	70 °C	-10 °C	-10 °C	50000 Hrs		21.5 Pa	0.086 in H2O	362.87 g	0.8 lb	119 mm	119 mm	Ball	8 W	2 Terminals	Tubeaxial	25.5 mm	1.48 mł/min	53 CFM	220 VAC	Aluminum	50 mA	2100 RPM	Fiberglass Reinforced Polycarbonate (PC)
NMB TECHNOLOGIES 4710PS-12T-B30-A00	CE CSA UL VDE	70 °C	70 °C	-10 °C	-10 °C	50000 Hrs	38 dB(A)			362.87 g	0.8 lb	119 mm	119 mm	Ball	11 W	2 Terminals	Tubeaxial	25.5 mm	1.98 mł/min	70.6 CFM	115 VAC	Aluminum		2700 RPM	Fiberglass Reinforced Polycarbonate (PC)
NMB TECHNOLOGIES 4710PS-20T-B30-B00	CE CSA UL VDE	70 °C	70 °C	-10 °C	-10 °C	50000 Hrs	38 dB(A)	41.1 Pa	0.165 in H2O	362.87 g	0.8 lb	119 mm	119 mm	Ball	11 W	2 Terminals	Tubeaxial	25.5 mm	1.98 mł/min	70.6 CFM	200 VAC	Aluminum	0.09 A	2700 RPM	Fiberglass Reinforced Polycarbonate (PC)
NMB TECHNOLOGIES 4710PS-20T-B20-B00	CE CSA UL VDE	70 °C	70 °C	-10 °C	-10 °C	50000 Hrs		21.5 Pa	0.086 in H2O	362.87 g	0.8 lb	119 mm	119 mm	Ball	8 W	2 Terminals	Tubeaxial	25.5 mm	1.48 mł/min	53 CFM	200 VAC	Aluminum	60 mA	2000 RPM	Fiberglass Reinforced Polycarbonate (PC)
NMB TECHNOLOGIES 4710PS-12T-B20-A00	CE CSA UL VDE	70 °C	70 °C	-10 °C	-10 °C	50000 Hrs		21.5 Pa	0.086 in H2O	362.87 g	0.8 lb	119 mm	119 mm	Ball	7 W	2 Terminals	Tubeaxial	25.5 mm	1.48 mł/min	53 CFM	115 VAC	Aluminum	0.09 A	2000 RPM	Fiberglass Reinforced Polycarbonate (PC)
NMB TECHNOLOGIES 4710PS-24T-B20-A00	CE CSA UL VDE	70 °C	70 °C	-10 °C	-10 °C	50000 Hrs		21.5 Pa	0.086 in H2O	362.87 g	0.8 lb	119 mm	119 mm	Ball	8 W	2 Terminals	Tubeaxial	25.5 mm	1.48 mł/min	53 CFM	240 VAC	Aluminum	50 mA	2100 RPM	Fiberglass Reinforced Polycarbonate (PC)
NMB TECHNOLOGIES 4710PS-23T-B3A-A00	CE CSA UL VDE	70 °C	70 °C	-10 °C	-10 °C	50000 Hrs	38 dB(A)	40 Pa	0.16 in H2O	362.87 g	0.8 lb	119 mm	119 mm	Ball	11 W	2 Terminals	Tubeaxial	25.5 mm	1.98 mł/min	70.6 CFM	230 VAC	Aluminum	0.09 A	2700 RPM	Fiberglass Reinforced Polycarbonate (PC)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

4710PS Series

Fan Tubeaxial 115VAC Square - 119mm L x 119mm H Ball 53.0 CFM (1.48m³/min) 2 Terminals
