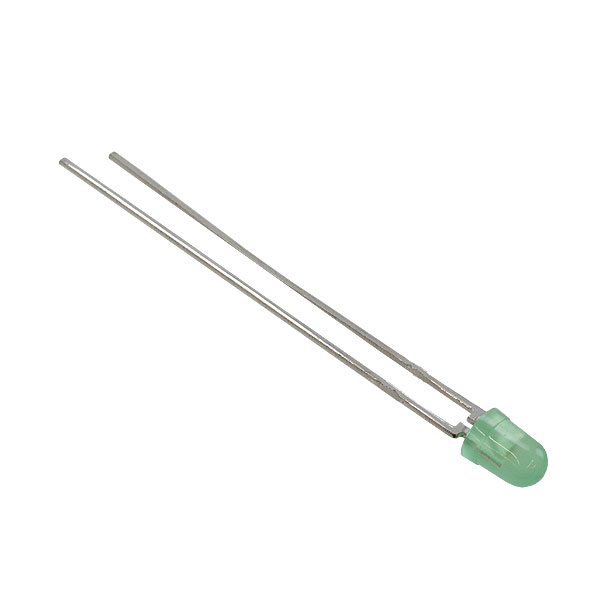

5219326F - 521-9326F

5219326F

Active
DIALIGHT

LED UNI-COLOR GREEN 565NM 2-PIN T-1 BULK

Deep-Dive with AI

Search across all available documentation for this part.

5219326F - 521-9326F

5219326F

Active
DIALIGHT

LED UNI-COLOR GREEN 565NM 2-PIN T-1 BULK

Deep-Dive with AI

Technical Specifications

Parameters and characteristics for this part

Specification5219326F
ColorGreen
ConfigurationStandard
Current - Test2 mA
Height (Max) [Max] [z]5.86 mm
Lens ColorGreen
Lens Size [diameter]3 mm
Lens StyleRound with Domed Top
Lens TransparencyDiffused
Millicandela Rating1.6 mcd
Mounting TypeThrough Hole
Package / CaseRadial
Supplier Device Package3 mm
Viewing Angle60 °
Voltage - Forward (Vf) (Typ)1.9 V
Wavelength - Peak565 nm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
ArrowN/A 125$ 0.50
300$ 0.50
700$ 0.49
1400$ 0.48
1500$ 0.46
DigikeyBulk 1$ 1.55
10$ 0.98
100$ 0.69
500$ 0.57
1000$ 0.53
2000$ 0.51
5000$ 0.48
10000$ 0.46

Description

General part information

5219326 Series

Green LED Indication - Discrete 1.9V Radial

Documents

Technical documentation and resources

No documents available
