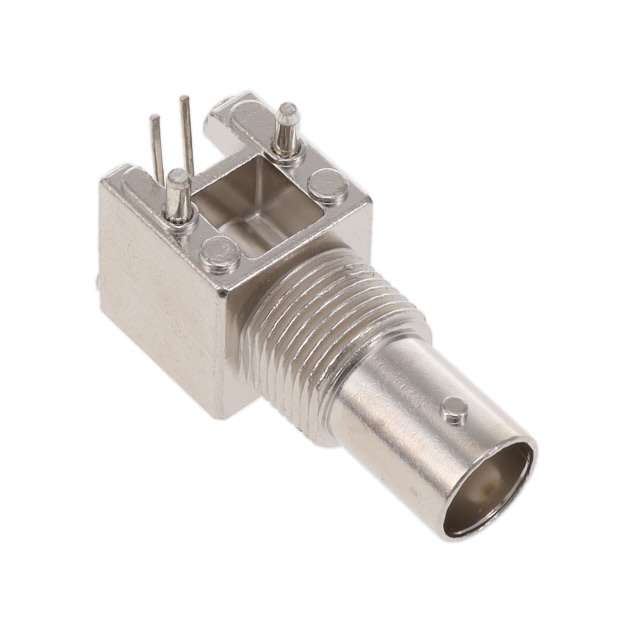

RF1-01A-D-00-75-M - RF1-01A-D-00-75-M

RF1-01A-D-00-75-M

Active
Adam Tech

BNC R/A LOW PROFILE INSUL PCB SK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetECBT2-E224053 Data Connectors, Signal, Control, Power Applications
RF1-01A-D-00-75-M - RF1-01A-D-00-75-M

RF1-01A-D-00-75-M

Active
Adam Tech

BNC R/A LOW PROFILE INSUL PCB SK

Deep-Dive with AI

DocumentsDatasheetECBT2-E224053 Data Connectors, Signal, Control, Power Applications

Technical Specifications

Parameters and characteristics for this part

SpecificationRF1-01A-D-00-75-M
Body FinishNickel
Body MaterialZinc Alloy
Center Contact MaterialPhosphor Bronze
Center Contact PlatingGold
Connector StyleBNC
Connector TypeMale Pin, Plug
Contact TerminationSolder
Dielectric MaterialPolyoxymethylene (POM) Acetal
Dielectric MaterialPolypropylene (PP)
Fastening TypeBayonet Lock
FeaturesCode A
Frequency - Max [Max]1 GHz
Impedance75 Ohms
Mounting TypeThrough Hole, Right Angle
Number of Ports1
Shield TerminationSolder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 3.17
10$ 2.42
25$ 2.18
50$ 2.02
100$ 1.87
250$ 1.69
500$ 1.57
1000$ 1.47
2500$ 1.34

Description

General part information

RF1-01 Series

BNC Connector Plug, Male Pin 75 Ohms Through Hole, Right Angle Solder
