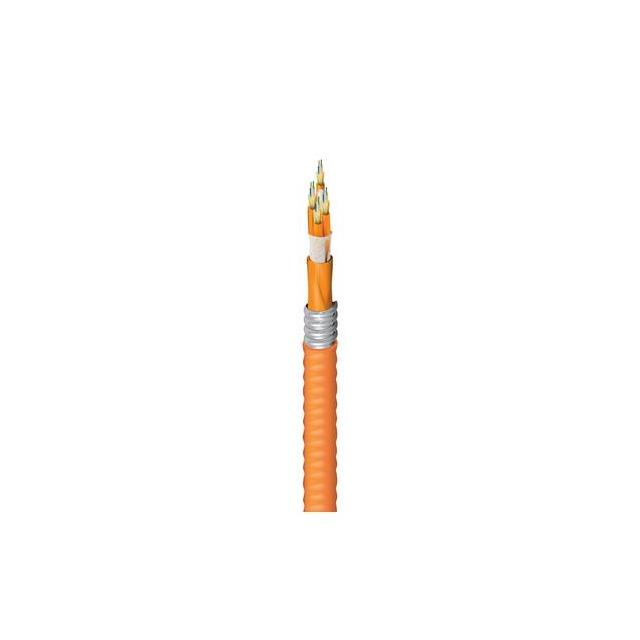

FI1D024AJ

Active

Belden Inc.

CBL FIBER OPTIC 125UM MULTIMODE

Search across all available documentation for this part.

Active

Belden Inc.

CBL FIBER OPTIC 125UM MULTIMODE

Technical Specifications

Parameters and characteristics for this part

Specification	FI1D024AJ

Cladding Diameter [diameter]	125 µm
Core Diameter [diameter]	62.5 µm
Features	24
Features	Armored
Jacket (Insulation) Diameter [diameter]	0.841 in
Jacket (Insulation) Diameter [diameter]	21.36 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Orange
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Ratings	OFCP
Style	Multiple Fibers
Tensile Strength	40.8 kg
Type	Multimode

Part	Operating Temperature [Min]	Operating Temperature [Max]	Type	Style	Cladding Diameter [diameter]	Ratings	Jacket (Insulation) Material	Features	Features	Jacket Color	Tensile Strength	Core Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]
Belden Inc. FI1D024FJ	-20 C	70 °C	Multimode	Multiple Fibers	125 µm	OFCR	Poly-Vinyl Chloride (PVC)	24	Armored	Orange	40.8 kg	62.5 µm	23.62 mm	0.93 in
Belden Inc. FI1D024P9	0 °C	70 °C	Multimode	Multiple Fibers	125 µm	OFNP	Poly-Vinyl Chloride (PVC)	24	Rip Cord	Orange	40.8 kg	62.5 µm	8.38 mm	0.33 in
Belden Inc. FI1D024AJ	0 °C	70 °C	Multimode	Multiple Fibers	125 µm	OFCP	Poly-Vinyl Chloride (PVC)	24	Armored	Orange	40.8 kg	62.5 µm	21.36 mm	0.841 in
Belden Inc. FI1D024F9	-20 C	70 °C	Multimode	Multiple Fibers	125 µm	OFCR	Poly-Vinyl Chloride (PVC)	24	Armored	Orange	40.8 kg	62.5 µm	15.24 mm	0.6 in
Belden Inc. FI1D024A9	0 °C	70 °C	Multimode	Multiple Fibers	125 µm	OFCP	Poly-Vinyl Chloride (PVC)	24	Armored	Orange	40.8 kg	62.5 µm	14.73 mm	0.58 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 8.32

General part information

Fiber Optic Cable Orange Multimode 125µm

Technical documentation and resources
