2906223

Active

Phoenix Contact

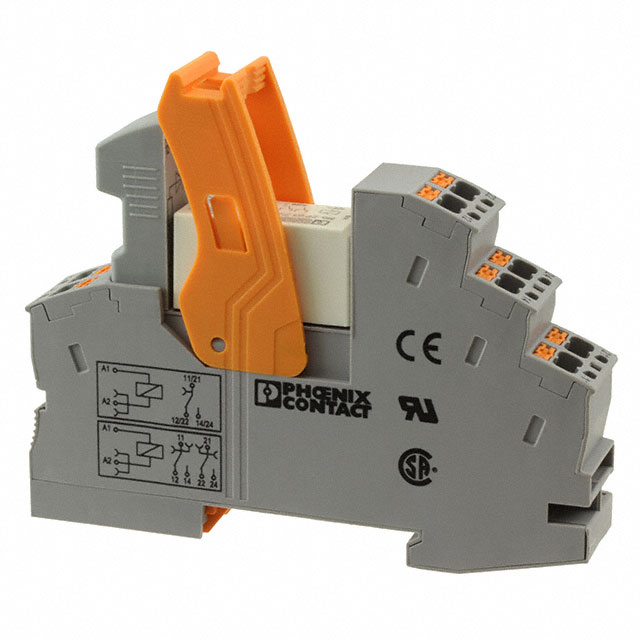

RELAY GEN PURPOSE DPDT 8A 12V

Search across all available documentation for this part.

Active

Phoenix Contact

RELAY GEN PURPOSE DPDT 8A 12V

Technical Specifications

Parameters and characteristics for this part

Specification	2906223

Approval Agency	CSA
Coil Current	33 mA
Coil Resistance	364 Ohms
Coil Type	Non Latching
Coil Voltage	12 VDC
Contact Form	DPDT (2 Form C)
Contact Material	Silver Nickel (AgNi)
Contact Rating (Current)	8 A
Features	Socket Included, Diode, Lighted Indicator
Mounting Type	DIN Rail
Operate Time	8 ms
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-40 °C
Relay Type	General Purpose
Release Time	10 ms
Switching Voltage	250 VAC, 250 VDC
Termination Style	Spring Terminal

Part	Contact Material	Relay Type	Release Time	Contact Form	Operate Time	Features	Coil Current	Contact Rating (Current)	Termination Style	Mounting Type	Coil Type	Approval Agency	Coil Resistance	Operating Temperature [Min]	Operating Temperature [Max]	Switching Voltage	Coil Voltage
Phoenix Contact 2906223	Silver Nickel (AgNi)	General Purpose	10 ms	DPDT (2 Form C)	8 ms	Diode Lighted Indicator Socket Included	33 mA	8 A	Spring Terminal	DIN Rail	Non Latching	CSA	364 Ohms	-40 °C	70 °C	250 VAC 250 VDC	12 VDC
Phoenix Contact 2906224	Silver Nickel (AgNi)	General Purpose	10 ms	SPDT (1 Form C)	8 ms	Diode Lighted Indicator Socket Included	33 mA	11 A	Spring Terminal	DIN Rail	Non Latching		364 Ohms	-40 °C	70 °C	250 VAC 250 VDC	12 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

General Purpose Relay DPDT (2 Form C) 12VDC Coil DIN Rail
