Technical Specifications
Parameters and characteristics for this part

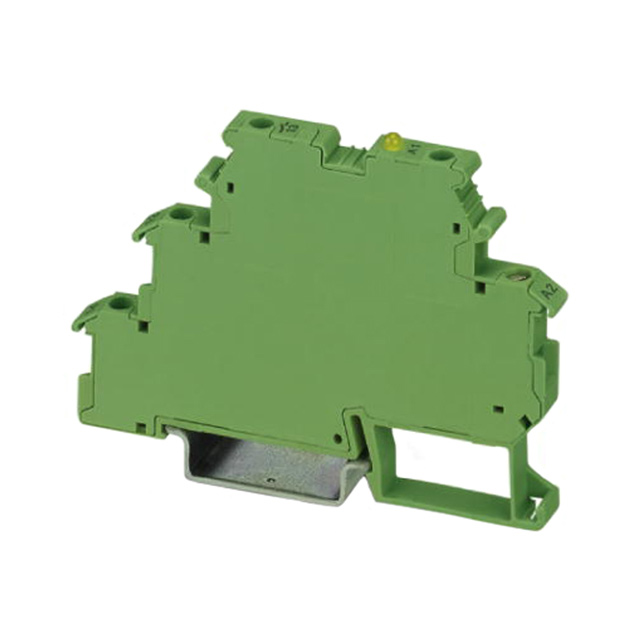

| Specification | 2964623 |
|---|---|
| Approval Agency | cULus, EAC |
| Load Current | 800 mA |
| Mounting Type | DIN Rail |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -20 C |
| Output Type | AC, Zero Cross |
| Package / Case | Module |
| Termination Style | Screw Terminal |
| Voltage - Input | 5 VDC |
| Voltage - Load [Max] | 253 V |
| Voltage - Load [Min] | 10 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 125.61 | |
Description
General part information
296462 Series
Solid State SPST-NO (1 Form A) Module
