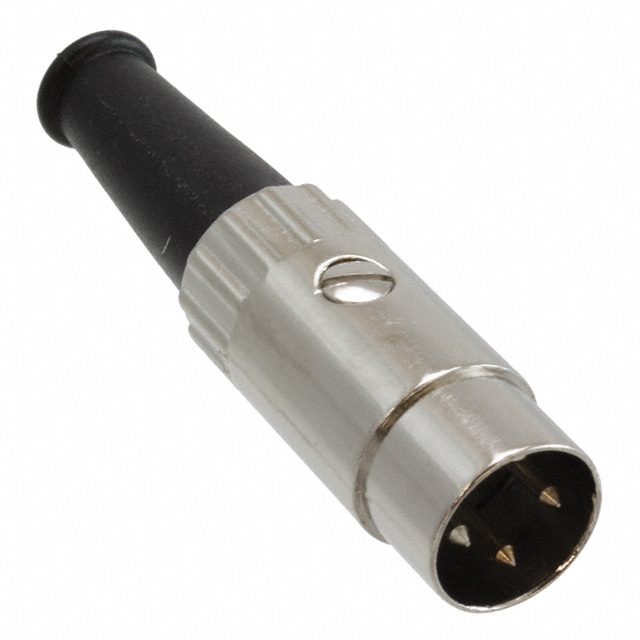

05BL3MX

Active

Switchcraft Inc.

CONN PLUG MALE DIN 3POS SOLDER

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN PLUG MALE DIN 3POS SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	05BL3MX

Backshell Material, Plating	Nickel, Die Cast
Color	Silver
Connector Type	Plug, Male Pins
Fastening Type	Push-Pull
Features	Backshell, Strain Relief, Cable Clamp
Insert Material	Plastic
Mounting Type	Free Hanging (In-Line)
Orientation	2
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Die Cast
Shell Size - Insert	DIN
Termination	Solder

Part	Orientation	Shell Material	Connector Type	Shell Size - Insert	Color	Primary Material	Fastening Type	Backshell Material, Plating	Insert Material	Mounting Type	Shell Finish	Features	Termination
Switchcraft Inc. 05BL3MX	2	Zinc Die Cast	Male Pins Plug	DIN	Silver	Metal	Push-Pull	Die Cast Nickel	Plastic	Free Hanging (In-Line)	Nickel	Backshell Cable Clamp Strain Relief	Solder

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Position Circular Connector Plug, Male Pins Solder
