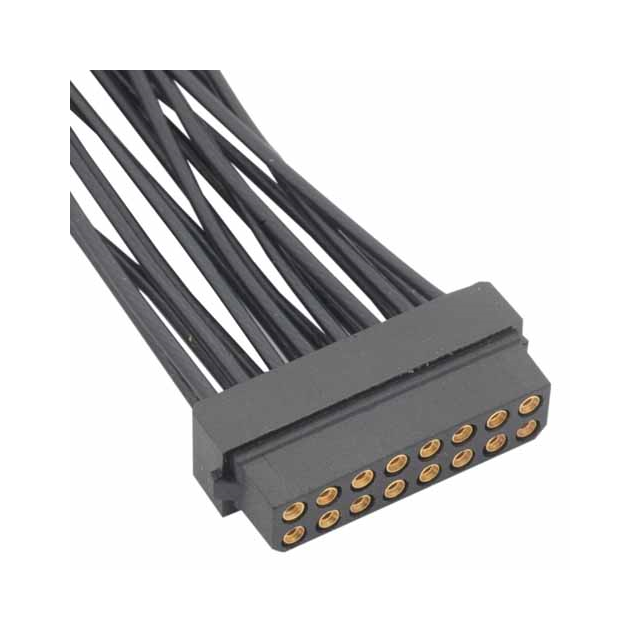

B5740-220-F-C-0 - B5740-220-F-C-0

B5740-220-F-C-0

Active
Harwin Inc.

10+10 POS. FEMALE DIL 24-28AWG CABLE CONN. KIT, FOR LATCHES (BS RELEASE) ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsM80-0110001M80, M83 Series Spec Sheet+2
B5740-220-F-C-0 - B5740-220-F-C-0

B5740-220-F-C-0

Active
Harwin Inc.

10+10 POS. FEMALE DIL 24-28AWG CABLE CONN. KIT, FOR LATCHES (BS RELEASE) ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsM80-0110001M80, M83 Series Spec Sheet+2

Technical Specifications

Parameters and characteristics for this part

SpecificationB5740-220-F-C-0
Cable TerminationCrimp
ColorBlack
Connector TypeReceptacle
Contact FinishGold
Contact Finish Thickness0.3 Ám
Contact Finish Thickness11.8 Áin
Contact TypeFemale Socket
Fastening TypeLocking Ramp
Mounting TypeFree Hanging (In-Line)
Number of Positions20
Number of Rows2
Pitch [x]0.079 in
Pitch [x]2 mm
Row Spacing2 mm
Row Spacing0.079 in
Wire Gauge [Max]28 AWG
Wire Gauge [Min]24 AWG
Wire TypeDiscrete

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 90$ 12.80
NewarkEach 50$ 13.72
100$ 12.97
250$ 11.85
500$ 11.03
1000$ 10.14
2500$ 9.92

Description

General part information

B5740-220 Series

20 Position Rectangular Receptacle Connector Crimp Gold 24-28 AWG
