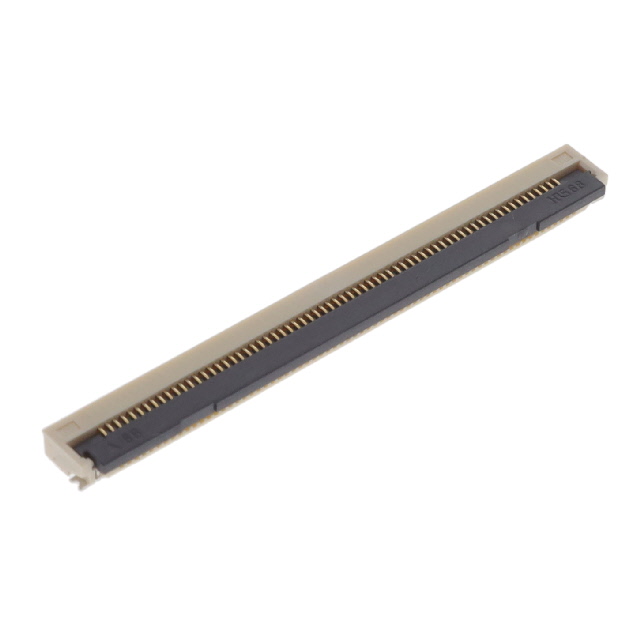

TF06L-68S-0.5SH(800)

Active

Hirose Electric USA, Inc.

0.5MM PITCH, 2.1MM HEIGHT, BOTTOM CONTACT, FRONT FLIP

Search across all available documentation for this part.

Active

Hirose Electric USA, Inc.

0.5MM PITCH, 2.1MM HEIGHT, BOTTOM CONTACT, FRONT FLIP

Technical Specifications

Parameters and characteristics for this part

Specification	TF06L-68S-0.5SH(800)

Actuator Color	Black
Actuator Material	Liquid Crystal Polymer (LCP)
Cable End Type	Tabbed
Connector/Contact Type	Contacts, Bottom
Contact Finish	Gold
Contact Finish Thickness	1.97 Áin
Contact Finish Thickness	0.05 Ám
Contact Material	Phosphor Bronze
Current Rating (Amps)	0.5 A
Features	Zero Insertion Force (ZIF), Solder Retention
FFC, FCB Thickness	0.3 mm
Flat Flex Type	FPC, FFC
Height Above Board	2.1 mm
Height Above Board	0.083 "
Housing Color	Beige
Housing Material	Liquid Crystal Polymer (LCP)
Locking Feature	Flip Lock
Material Flammability Rating	UL94 V-0
Mating Cycles	20
Mounting Type	Surface Mount, Right Angle
Number of Positions	68
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.5 mm
Pitch [x]	0.02 in
Termination	Solder
Voltage Rating	50 V

Part	Locking Feature	Actuator Color	Material Flammability Rating	Current Rating (Amps)	Mating Cycles	Voltage Rating	Features	Height Above Board	Height Above Board	Housing Color	Pitch [x]	Pitch [x]	Cable End Type	Actuator Material	Mounting Type	Contact Material	Number of Positions	Contact Finish	Housing Material	Termination	FFC, FCB Thickness	Contact Finish Thickness	Contact Finish Thickness	Operating Temperature [Max]	Operating Temperature [Min]	Flat Flex Type	Connector/Contact Type
Hirose Electric USA, Inc. TF06L-68S-0.5SH(800)	Flip Lock	Black	UL94 V-0	0.5 A	20	50 V	Solder Retention Zero Insertion Force (ZIF)	2.1 mm	0.083 "	Beige	0.5 mm	0.02 in	Tabbed	Liquid Crystal Polymer (LCP)	Surface Mount Right Angle	Phosphor Bronze	68	Gold	Liquid Crystal Polymer (LCP)	Solder	0.3 mm	1.97 Áin	0.05 Ám	85 °C	-40 °C	FFC FPC	Contacts Bottom
Hirose Electric USA, Inc. TF06L-80S-0.5SH(800)	Flip Lock	Black	UL94 V-0	0.5 A	20	50 V	Solder Retention Zero Insertion Force (ZIF)	2.1 mm	0.083 "	Beige	0.5 mm	0.02 in	Tabbed	Liquid Crystal Polymer (LCP)	Surface Mount Right Angle	Phosphor Bronze	80	Gold	Liquid Crystal Polymer (LCP)	Solder	0.3 mm	1.97 Áin	0.05 Ám	85 °C	-40 °C	FFC FPC	Contacts Bottom

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

68 Position FFC, FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle
