882-03/003
ActiveQualtek

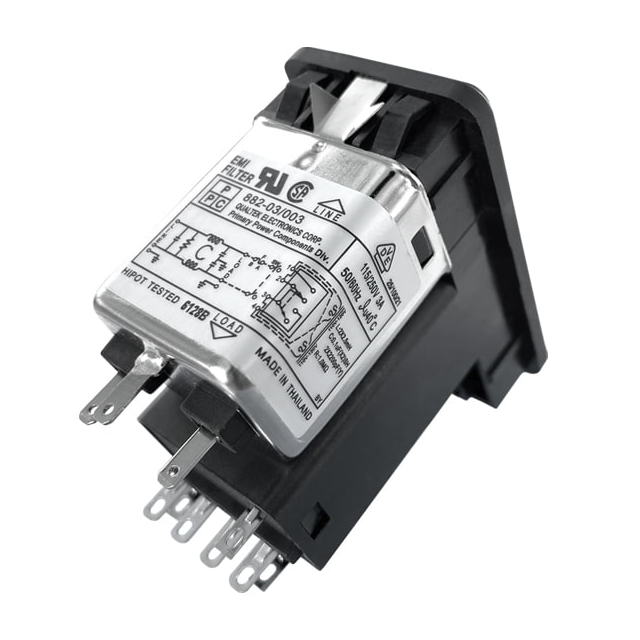

PWR ENT MOD RCPT IEC320-C14 PNL
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
882-03/003
ActiveQualtek
PWR ENT MOD RCPT IEC320-C14 PNL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 882-03/003 |
|---|---|
| Accomodates a Fuse | True |
| Approval Agency | UL, VDE, CSA |
| Connector Style | IEC 320-C14 |
| Connector Type | Receptacle, Male Blades - Module |
| Current Rating - Appliance Inlet | 3 A |
| Features | Voltage Selector |
| Filter Type | Filtered (EMI, RFI) - Commercial |
| Fuse Holder, Drawer | Fuse Holder |
| Mounting Type | Panel Mount, Snap-In |
| Panel Cutout Dimensions | Variable Size |
| Panel Thickness [Max] | 0.126 in |
| Panel Thickness [Max] | 3.2 mm |
| Panel Thickness [Min] | 0.79 mm |
| Panel Thickness [Min] | 0.031 " |
| Switch Features | Switch On-Off |
| Termination | Solder Eyelet |
| Voltage Rating - Appliance Inlet [Max] | 250 VAC |
| Voltage Rating - Appliance Inlet [Min] | 115 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 27.70 | |
| 24 | $ 22.13 | |||
| 48 | $ 21.08 | |||
| 72 | $ 20.48 | |||
| 120 | $ 19.76 | |||
| 264 | $ 18.69 | |||
| 504 | $ 17.88 | |||
Description
General part information
882-03 Series
Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Snap-In
Documents
Technical documentation and resources
