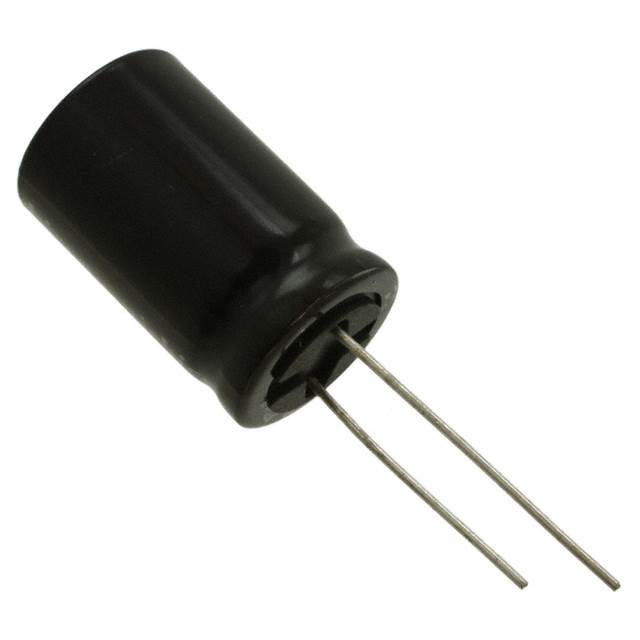

UVY1E472MHD

Active

NICHICON

ELECTROLYTIC CAPACITOR, 4700 ΜF, 25 V, ± 20%, PC PIN, 1000 HOURS @ 105°C, POLAR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Miniature Type Taping Spec

UVY1E472MHD

Active

NICHICON

ELECTROLYTIC CAPACITOR, 4700 ΜF, 25 V, ± 20%, PC PIN, 1000 HOURS @ 105°C, POLAR

Deep-Dive with AI

DocumentsDatasheet Miniature Type Taping Spec

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	UVY1E472MHD

Applications	General Purpose
Capacitance	4700 µF
Height - Seated (Max) [Max] [z]	1.063 in
Height - Seated (Max) [Max] [z]	27 mm
Lead Spacing	7.5 mm
Lead Spacing	0.295 in
Lifetime @ Temp.	2000 Hrs
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Package / Case	Radial, Can
Polarization	Polar
Ripple Current @ High Frequency	1.8055 A
Ripple Current @ Low Frequency	1.57 A
Size / Dimension [diameter]	0.63 in
Size / Dimension [diameter]	16 mm
Tolerance	20 %
Voltage - Rated	25 VDC

UVY1E Series

Part	Ripple Current @ High Frequency	Lead Spacing	Lead Spacing	Lifetime @ Temp.	Size / Dimension [diameter]	Size / Dimension [diameter]	Tolerance	Package / Case	Ripple Current @ Low Frequency	Applications	Mounting Type	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Polarization	Voltage - Rated	Operating Temperature [Max]	Operating Temperature [Min]	Capacitance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
NICHICON UVY1E153MRD	3.1625 A	0.394 in	10 mm	2000 Hrs	22 mm	0.866 in	20 %	Radial Can	2.75 A	General Purpose	Through Hole	2.047 in	52 mm	Polar	25 VDC	105 ░C	-55 °C
NICHICON UVY1E472MHD	1.8055 A	0.295 in	7.5 mm	2000 Hrs	16 mm	0.63 in	20 %	Radial Can	1.57 A	General Purpose	Through Hole	1.063 in	27 mm	Polar	25 VDC	105 ░C	-55 °C	4700 µF
NICHICON UVY1E221MED	300 mA	0.098 in	2.5 mm	1000 Hrs	6.3 mm	0.248 in	20 %	Radial Can	200 mA	General Purpose	Through Hole			Polar	25 VDC	105 ░C	-55 °C	220 µF	0.492 in	12.5 mm
NICHICON UVY1E223MRD	3.7375 A	0.492 in	12.5 mm	2000 Hrs	25 mm	0.984 "	20 %	Radial Can	3.25 A	General Purpose	Through Hole	2.047 in	52 mm	Polar	25 VDC	105 ░C	-55 °C	22000 µF
NICHICON UVY1E221MED1TD	300 mA	0.098 in	2.5 mm	1000 Hrs	6.3 mm	0.248 in	20 %	Radial Can	200 mA	General Purpose	Through Hole			Polar	25 VDC	105 ░C	-55 °C	220 µF	0.492 in	12.5 mm
NICHICON UVY1E102MPD	701.5 mA	0.197 in	5 mm	2000 Hrs	10 mm	0.394 in	20 %	Radial Can	610 mA	General Purpose	Through Hole			Polar	25 VDC	105 ░C	-55 °C	1000 µF	0.689 in	17.5 mm
NICHICON UVY1E331MPD1TA	412.5 mA	0.138 in	3.5 mm	1000 Hrs	8 mm	0.315 "	20 %	Radial Can	275 mA	General Purpose	Through Hole	0.512 "	13 mm	Polar	25 VDC	105 ░C	-55 °C	330 µF
NICHICON UVY1E102MPD1TD	701.5 mA	0.197 in	5 mm	2000 Hrs	10 mm	0.394 in	20 %	Radial Can	610 mA	General Purpose	Through Hole			Polar	25 VDC	105 ░C	-55 °C	1000 µF	0.689 in	17.5 mm
NICHICON UVY1E332MHD1TN	1.61 A	0.295 in	7.5 mm	2000 Hrs	16 mm	0.63 in	20 %	Radial Can	1.4 A	General Purpose	Through Hole	1.063 in	27 mm	Polar	25 VDC	105 ░C	-55 °C	3.3 mF
NICHICON UVY1E221MED1TA	300 mA	0.098 in	2.5 mm	1000 Hrs	6.3 mm	0.248 in	20 %	Radial Can	200 mA	General Purpose	Through Hole			Polar	25 VDC	105 ░C	-55 °C	220 µF	0.492 in	12.5 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.24
		10	$ 1.44
		50	$ 1.12
		100	$ 1.02
		500	$ 0.85
		1000	$ 0.80
		2500	$ 0.74
		5000	$ 0.70
Newark	Each	100	$ 1.02
		500	$ 0.92
		1000	$ 0.80
		2500	$ 0.71

Description

General part information

UVY1E Series

4700 µF 25 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C
