ZSS-111-06-G-D-1040

Active

Samtec Inc.

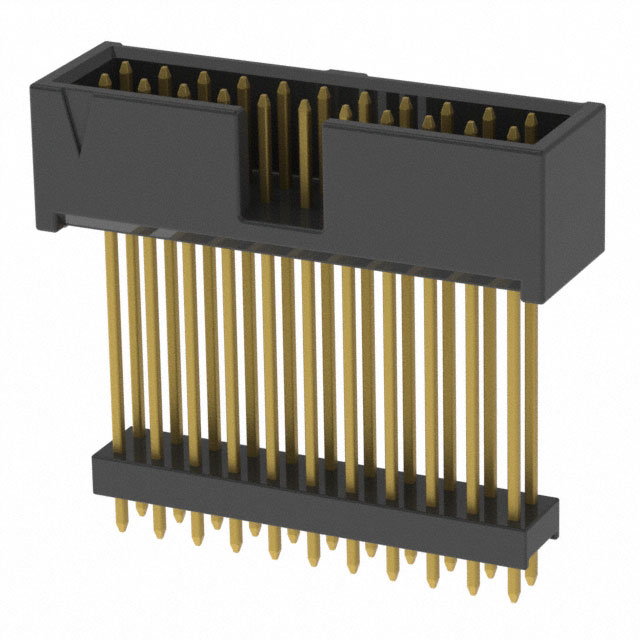

CONN ELEVATED SHROUDED HEADER HDR 22 POS 2.54MM SOLDER ST TOP ENTRY THRU-HOLE BULK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ZSS-111-06-G-D-1040

Active

Samtec Inc.

CONN ELEVATED SHROUDED HEADER HDR 22 POS 2.54MM SOLDER ST TOP ENTRY THRU-HOLE BULK

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ZSS-111-06-G-D-1040

null

ZSS-111 Series

Part	Number of Positions	Contact Length - Post	Contact Length - Post	Material Flammability Rating	Contact Length - Mating	Contact Length - Mating	Overall Contact Length	Overall Contact Length	Insulation Height	Insulation Height	Insulation Material	Mounting Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Shape	Contact Type	Current Rating (Amps)	Number of Rows	Features	Fastening Type	Contact Finish - Post	Pitch - Mating	Pitch - Mating	Shrouding	Number of Positions Loaded	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Style	Contact Material	Connector Type	Insulation Color	Overall Contact Length [x]	Overall Contact Length [x]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Height [z]	Insulation Height [z]	Contact Finish - Mating	Contact Length - Post [x]	Contact Length - Post [x]
Samtec Inc. ZSS-111-08-T-D-1117	22 positions	5.4 mm	0.213 in	UL94 V-0	6.35 mm	0.25 in	1.33 in	33.78 mm	28.37 mm	1.117 in	Polyester Glass Filled	Through Hole	2.54 mm	0.1 in	Square	Male Pin	3 A	2	Keying Slot	Push-Pull	Tin	0.1 in	2.54 mm	Shrouded - 4 Wall	All	Solder	105 ░C	-55 °C	Board to Board Cable	Phosphor Bronze	Elevated Header	Black
Samtec Inc. ZSS-111-01-S-D-515	22 positions	2.92 mm	0.115 in	UL94 V-0	6.35 mm	0.25 in					Polyester Glass Filled	Through Hole	2.54 mm	0.1 in	Square	Male Pin	3 A	2	Keying Slot	Push-Pull	Tin	0.1 in	2.54 mm	Shrouded - 4 Wall	All	Solder	125 °C	-55 °C	Board to Board Cable	Phosphor Bronze	Elevated Header	Black	0.63 "	16 mm	30 Áin	0.76 Ám	0.515 "	13.08 mm	Gold
Samtec Inc. ZSS-111-05-G-D-915
Samtec Inc. ZSS-111-08-L-D-1180	22 positions			UL94 V-0	6.35 mm	0.25 in	1.33 in	33.78 mm			Polyester Glass Filled	Through Hole	2.54 mm	0.1 in	Square	Male Pin	3 A	2	Keying Slot	Push-Pull	Tin	0.1 in	2.54 mm	Shrouded - 4 Wall	All	Solder	125 °C	-55 °C	Board to Board Cable	Phosphor Bronze	Elevated Header	Black			10 çin	0.25 çm	1.18 in	29.97 mm	Gold	0.15 in	3.81 mm
Samtec Inc. ZSS-111-05-F-D-900-LL	22 positions	3.3 mm	0.13 in	UL94 V-0	6.35 mm	0.25 in	1.03 in	26.16 mm	22.86 mm	0.9 in	Polyester Glass Filled	Through Hole	2.54 mm	0.1 in	Square	Male Pin	3 A	2	Keying Slot	Push-Pull	Tin	0.1 in	2.54 mm	Shrouded - 4 Wall	All	Kinked Pin Solder	125 °C	-55 °C	Board to Board Cable	Phosphor Bronze	Elevated Header	Black			3 µin	0.076 µm			Gold
Samtec Inc. ZSS-111-01-T-D-500
Samtec Inc. ZSS-111-01-S-D-505-LL	22 positions			UL94 V-0	6.35 mm	0.25 in			12.83 mm	0.505 in	Polyester Glass Filled	Through Hole	2.54 mm	0.1 in	Square	Male Pin	3 A	2	Keying Slot	Push-Pull	Tin	0.1 in	2.54 mm	Shrouded - 4 Wall	All	Kinked Pin Solder	125 °C	-55 °C	Board to Board Cable	Phosphor Bronze	Elevated Header	Black	0.63 "	16 mm	30 Áin	0.76 Ám			Gold	0.125 in	3.18 mm
Samtec Inc. ZSS-111-06-G-D-1040
Samtec Inc. ZSS-111-09-L-D-1340
Samtec Inc. ZSS-111-06-S-D-1040-LL	22 positions	2.29 mm	0.09 "	UL94 V-0	6.35 mm	0.25 in	1.13 in	28.7 mm	26.42 mm	1.04 "	Polyester Glass Filled	Through Hole	2.54 mm	0.1 in	Square	Male Pin	3 A	2	Keying Slot	Push-Pull	Tin	0.1 in	2.54 mm	Shrouded - 4 Wall	All	Kinked Pin Solder	125 °C	-55 °C	Board to Board Cable	Phosphor Bronze	Elevated Header	Black			30 Áin	0.76 Ám			Gold

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	1	$ 4.16
		25	$ 3.76
		50	$ 3.50
		100	$ 3.33
Digikey	Bulk	1	$ 4.16

Description

General part information

ZSS-111 Series

Connector Header position

Documents

Technical documentation and resources
