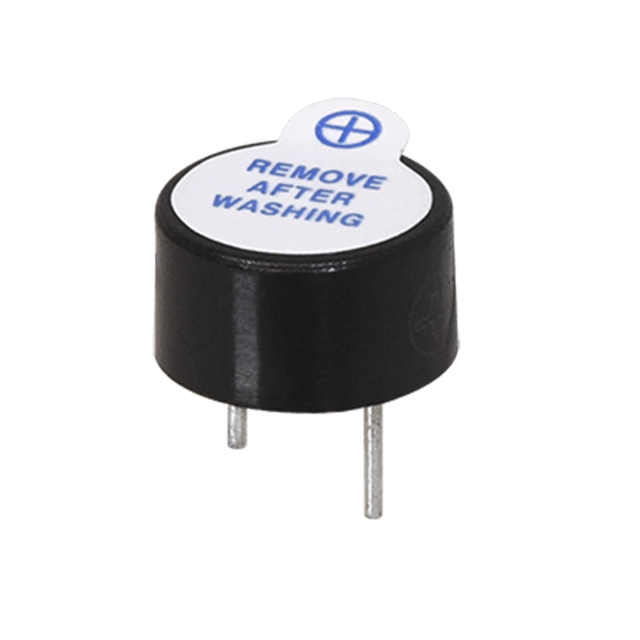

CMI-1295IC-0385T

Active

CUI Devices

BUZZER MAGNETIC 3V 12MM TH

Search across all available documentation for this part.

Active

CUI Devices

BUZZER MAGNETIC 3V 12MM TH

Technical Specifications

Parameters and characteristics for this part

Specification	CMI-1295IC-0385T

Current - Supply	30 mA
Driver Circuitry	Internally Driven, Indicator
Frequency	2.4 kHz
Height - Seated (Max) [Max]	0.394 in
Height - Seated (Max) [Max]	10 mm
Input Type	DC
Mounting Type	Through Hole
Operating Mode	Single Tone
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-30 ░C
Port Location	Top
Ratings	Washable
Size / Dimension [diameter]	12 mm
Size / Dimension [diameter]	0.472 in
Sound Pressure Level (SPL)	85 dB
Technology	Magnetic
Termination	PC Pins
Voltage - Rated	3 VDC
Voltage Range [Max]	5 VDC
Voltage Range [Min]	2 V

Part	Ratings	Sound Pressure Level (SPL)	Voltage Range [Max]	Voltage Range [Min]	Frequency	Current - Supply	Technology	Port Location	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [diameter]	Size / Dimension [diameter]	Operating Mode	Voltage - Rated	Driver Circuitry	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Termination	Mounting Type	Input Type
CUI Devices CMI-1295IC-1285T	Washable	85 dB	15 V	8 VDC	2.4 kHz	30 mA	Magnetic	Top	70 °C	-30 ░C	12 mm	0.472 in	Single Tone	12 VDC	Indicator Internally Driven	0.394 in	10 mm	PC Pins	Through Hole	DC
CUI Devices CMI-1295IC-0385T	Washable	85 dB	5 VDC	2 V	2.4 kHz	30 mA	Magnetic	Top	70 °C	-30 ░C	12 mm	0.472 in	Single Tone	3 VDC	Indicator Internally Driven	0.394 in	10 mm	PC Pins	Through Hole	DC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Buzzers Indicator, Internally Driven Magnetic 3 V 30mA 2.4kHz 85dB @ 3V, 10cm Through Hole PC Pins
