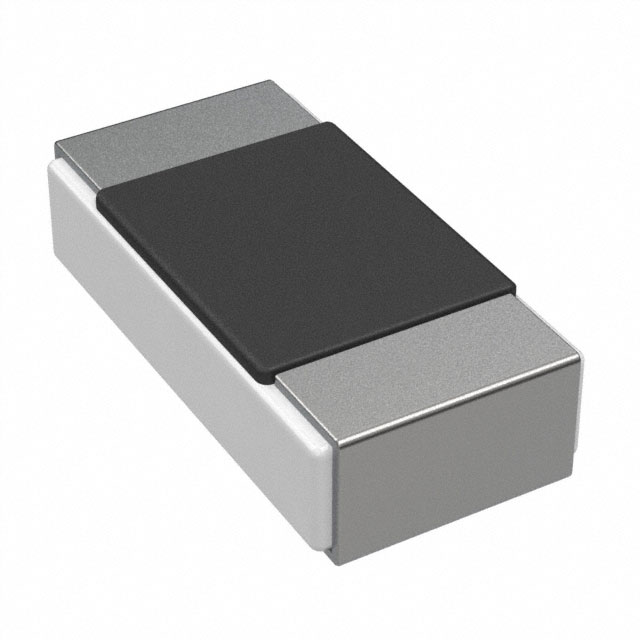

PFR05X-000-XNH
ActiveDelta Electronics/Cyntec
RES SMD 0 OHM JUMPER 1/16W 0402
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PFR05X-000-XNH
ActiveDelta Electronics/Cyntec
RES SMD 0 OHM JUMPER 1/16W 0402
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PFR05X-000-XNH |
|---|---|
| Composition | Thick Film |
| Height - Seated (Max) [Max] | 0.016 in |
| Height - Seated (Max) [Max] | 0.4 mm |
| Number of Terminations | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 0402 (1005 Metric) |
| Resistance | 0 Ohms |
| Size / Dimension [x] | 1 mm |
| Size / Dimension [x] | 0.039 in |
| Size / Dimension [y] | 0.02 in |
| Size / Dimension [y] | 0.5 mm |
| Supplier Device Package | 0402 |
| Tolerance | Jumper |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.10 | |
| 10 | $ 0.01 | |||
| 25 | $ 0.01 | |||
| 50 | $ 0.01 | |||
| 100 | $ 0.01 | |||
| 250 | $ 0.00 | |||
| 500 | $ 0.00 | |||
| 1000 | $ 0.00 | |||
| 5000 | $ 0.00 | |||
| Digi-Reel® | 1 | $ 0.10 | ||
| 10 | $ 0.01 | |||
| 25 | $ 0.01 | |||
| 50 | $ 0.01 | |||
| 100 | $ 0.01 | |||
| 250 | $ 0.00 | |||
| 500 | $ 0.00 | |||
| 1000 | $ 0.00 | |||
| 5000 | $ 0.00 | |||
| Tape & Reel (TR) | 10000 | $ 0.00 | ||
| 30000 | $ 0.00 | |||
| 50000 | $ 0.00 | |||
| 100000 | $ 0.00 | |||
Description
General part information
PFR05X Series
0 Ohms Jumper Chip Resistor 0402 (1005 Metric) Thick Film
Documents
Technical documentation and resources
