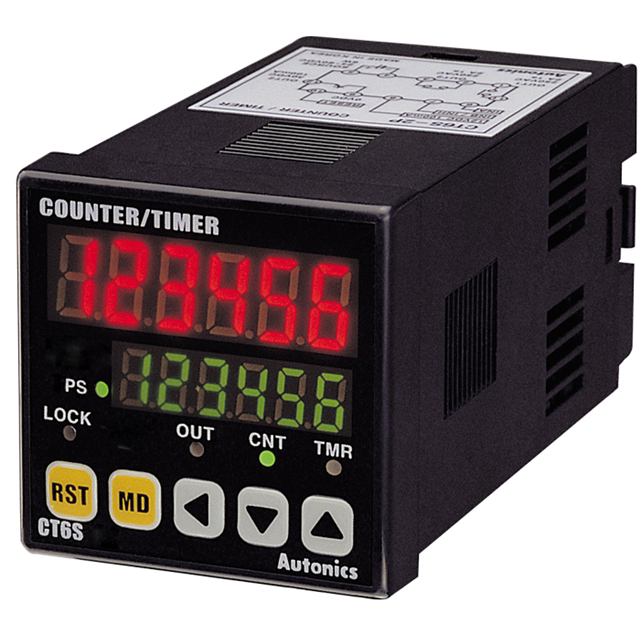

CT6S-2P2

Active

AUTONICS

COUNTER TIMER 24VAC/24-48VDC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CT6S-2P2

Active

AUTONICS

COUNTER TIMER 24VAC/24-48VDC

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CT6S-2P2

Count Rate	Multiple
Display Characters - Height	0.275 in, 0.394 in
Display Type	LED - Green, Red Characters
Ingress Protection	IP65 - Dust Tight, Water Resistant
Input Type	No Voltage, Voltage
Number of Characters Per Row	6
Number of Characters Per Row	6
Operating Mode	Up, Down
Output Type	Relay, Solid State
Panel Cutout Dimensions [x]	45 mm
Panel Cutout Dimensions [y]	45 mm
Reset	External, Front Panel
Termination Style	Screw Terminal
Time Format	Multiple
Type	Tachometer, Timer, Preset, Batch, Totalizer
Voltage - Supply	24 VAC
Voltage - Supply [Max]	48 V
Voltage - Supply [Min]	24 V

CT6S Series

Part	Input Type	Count Rate	Ingress Protection	Voltage - Supply [Min]	Voltage - Supply [Max]	Operating Mode	Termination Style	Display Type	Display Characters - Height	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Number of Characters Per Row	Number of Characters Per Row	Type	Reset	Time Format	Output Type	Voltage - Supply	Output Type [custom]
AUTONICS CT6S-I4	No Voltage Voltage	Multiple	IP65 - Dust Tight Water Resistant	100 VAC	240 VAC	Down Up	Screw Terminal	LED - Green Red Characters	0.275 in 0.394 in	45 mm	45 mm	6	6	Batch Preset Tachometer Timer Totalizer	External Front Panel	Multiple
AUTONICS CT6S-1P2	No Voltage Voltage	Multiple	IP65 - Dust Tight Water Resistant	24 V	48 V	Down Up	Screw Terminal	LED - Green Red Characters	0.275 in 0.394 in	45 mm	45 mm	6	6	Batch Preset Tachometer Timer Totalizer	External Front Panel	Multiple	Relay Solid State	24 VAC
AUTONICS CT6S-1P4T	No Voltage Voltage	Multiple	IP65 - Dust Tight Water Resistant	100 VAC	240 VAC	Down Up	Screw Terminal	LED - Green Red Characters	0.275 in 0.394 in	45 mm	45 mm	6	6	Batch Preset Tachometer Timer Totalizer	External Front Panel	Multiple	Relay Solid State
AUTONICS CT6S-2P2	No Voltage Voltage	Multiple	IP65 - Dust Tight Water Resistant	24 V	48 V	Down Up	Screw Terminal	LED - Green Red Characters	0.275 in 0.394 in	45 mm	45 mm	6	6	Batch Preset Tachometer Timer Totalizer	External Front Panel	Multiple	Relay Solid State	24 VAC
AUTONICS CT6S-2P4	No Voltage Voltage	Multiple	IP65 - Dust Tight Water Resistant	100 VAC	240 VAC	Down Up	Screw Terminal	LED - Green Red Characters	0.275 in 0.394 in	45 mm	45 mm	6	6	Batch Preset Tachometer Timer Totalizer	External Front Panel	Multiple			Relay (2) Solid State (2)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 166.00

Description

General part information

CT6S Series

Batch, Preset, Tachometer, Timer, Totalizer 24VAC, 24 ~ 48VDC Panel Mount
