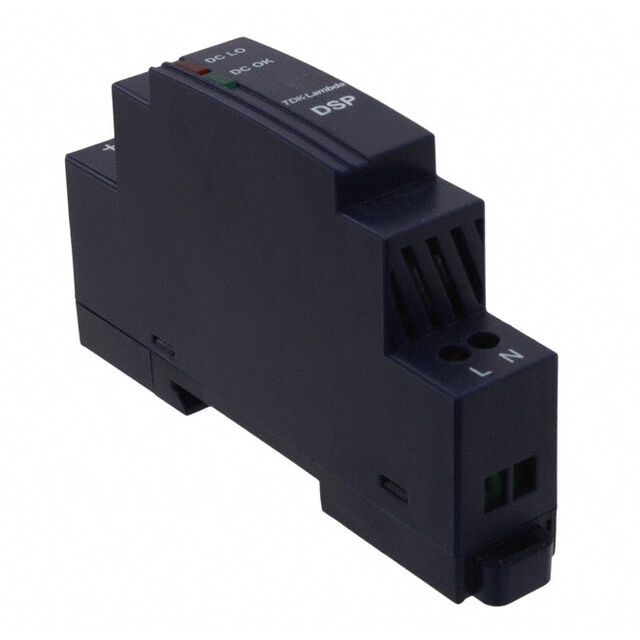

DSP10-12
ActiveTDK-LAMBDA
AC/DC DIN RAIL POWER SUPPLY (PSU), 1 OUTPUT, 10 W, 12 VDC, 830 MA
Deep-Dive with AI
Search across all available documentation for this part.
DSP10-12
ActiveTDK-LAMBDA
AC/DC DIN RAIL POWER SUPPLY (PSU), 1 OUTPUT, 10 W, 12 VDC, 830 MA
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DSP10-12 |
|---|---|
| AC Voltage - Input [Max] | 264 VAC |
| AC Voltage - Input [Min] | 90 VAC |
| Applications | ITE (Commercial) |
| Approval Agency | CE |
| Current - Output (Max) [Max] | 830 mA |
| DC Voltage - Input (Max) [Max] | 370 V |
| DC Voltage - Input (Min) [Min] | 120 V |
| Efficiency | 78 % |
| Features | Adjustable Output, Universal Input |
| Input Type | AC or DC |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 71 °C |
| Operating Temperature [Min] | -25 °C |
| Power (Watts) | 10 W |
| Size / Dimension [x] | 55.6 mm |
| Size / Dimension [x] | 2.19 in |
| Size / Dimension [y] | 18 mm |
| Size / Dimension [y] | 0.71 in |
| Size / Dimension [z] | 3.58 in |
| Size / Dimension [z] | 90.9 mm |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
DSP10 Series
The DSP10-12 is a DSP-series 10W 12V 0.83A DIN rail mount Power supply with wide range AC input, fits into wall mounted cabinets, no derating needed, 110 to 160%, fold forward under short-circuit over-current protection with class-2 double insulation.
